Tutorial: Grid Master / Detail on 3 levels

In this example demonstrates how to create a nested report. To build this application will be used 3 queries, using the tables of categories, products and applications.


Creating Grids Detail

1. Create a new grid application using the following SQL.

SELECT
orders.orderid,
orders.orderdate,
order_details.unitprice,
order_details.totalprice
FROM
orders, order_details
WHERE
orders.orderid = order_details.orderid
AND
productid = [v_productid]

2. In the ScriptCase toolbar click the Generate Source Code button.


3. Create another application of Grid using the products table and adding the WHERE clause in SQL below.

WHERE
categoryid= [v_categoryid]

3. In the application menu click on the “Fields >> New Field”

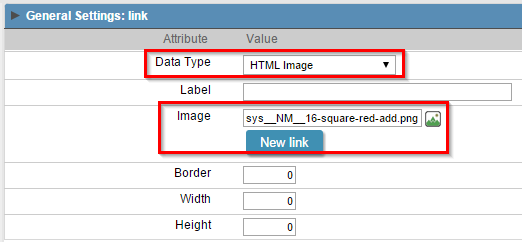

4. Create a field of type “HTML Image” and add an image to it. Then click the “New Link” button

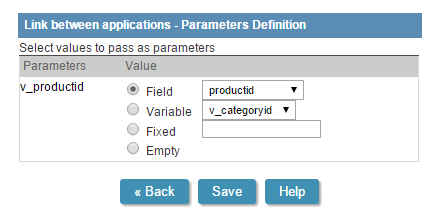

5. In the link, select the application you created earlier, and assign the parameters according to the image and save.

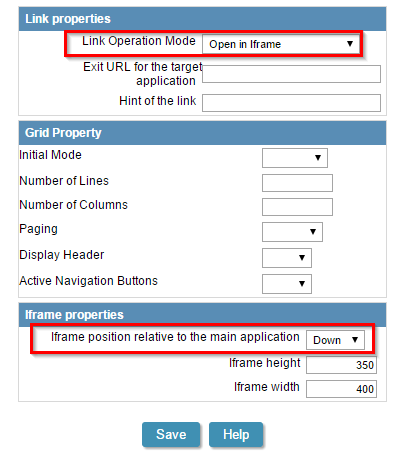

6. Use the following properties for the connection.


7. Go to the item “Positioning of the fields.”

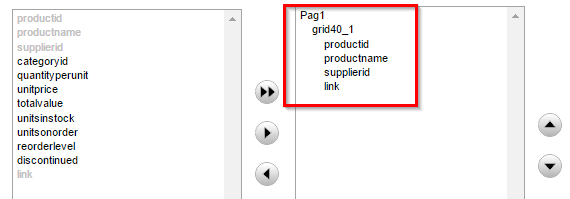

8. Sort according to the image below.


9. In the ScriptCase toolbar click the Generate Source Code button.


Creating the Master Grid

10. Create a new Grid application based on the table categories

11. Create a field of type “HTML Image” and add an image to it. Then click the “New Link” button

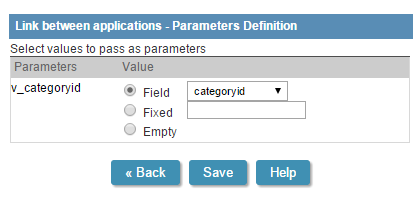

12. In the link, select the application you created earlier, and assign the parameters according to the image and save.

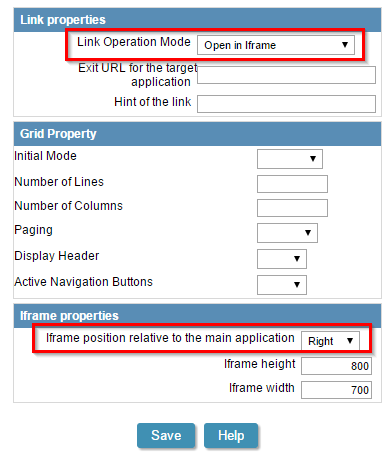

13. Use the following properties for the connection.

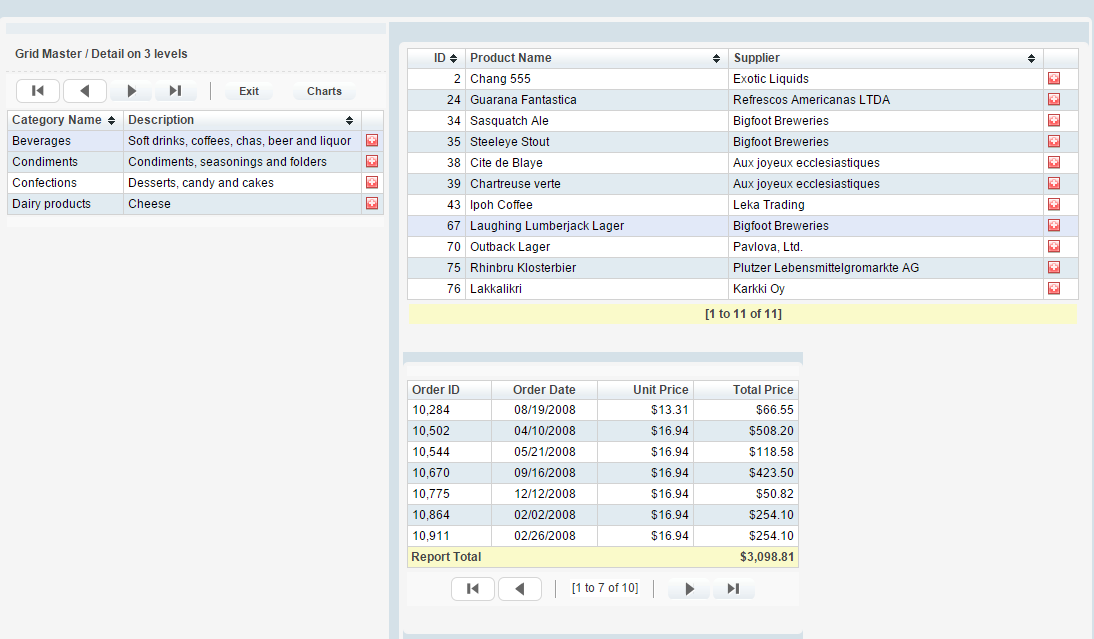

14. Click on the button “Run application”
