Tutorial: How to send an E-mail using the macro sc_mail_send

On this tutorial, Send an email using the macro sc_mail_send.

1. Create a new control form application


2. Click in New Field.


3. On quantity type 5 and click in Next.

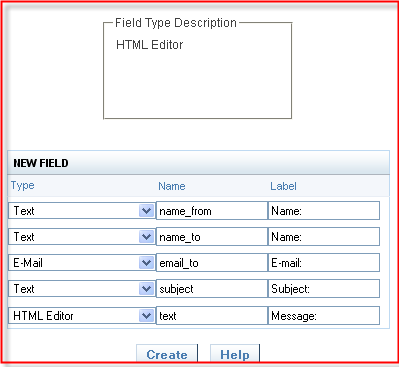

4. Create the fields according to the image below.


5. In the application menu click in Blocks from the Layout folder..


6. Edit theMain Block.


7. Change the block name and label to To

8. Click in Create New Block.

9. Enter the values for the attributes Name, Label and To


10. Change the block name and label to Mensagem

11. Click in Create New Block.

12. Enter the values for the attributes Name, Label and Mensagem


13. Edit the created blocks properties according to the image below.

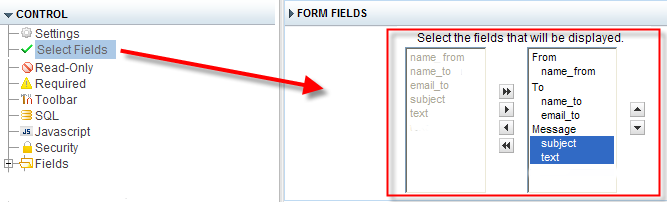

14. In the application menu click in Select Fields to organize the field according to the table below:


Bloco Campo
From name_from
To name_to
email_to
Message subject
text

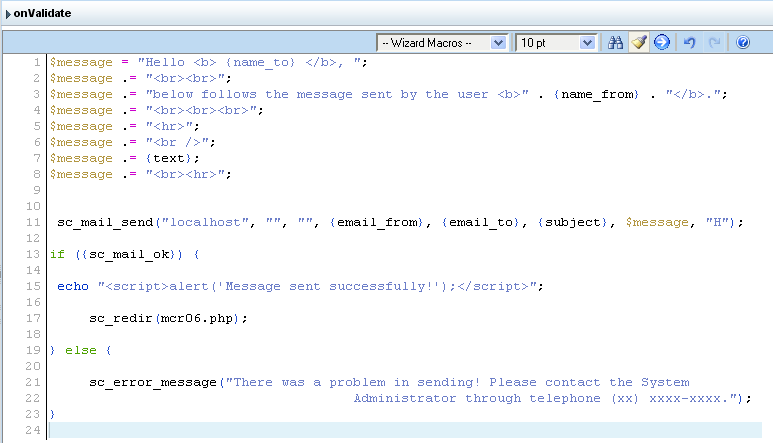

15. Code in the event OnValidate .


sc_mail_send(smtp, usr, pw, from, to, subject, message, mens_type, copies, copies_type, port, connection_type, attachment)
Atributes
smtp SMTP server address
usr SMTP server user
pw SMTP server password
from e-mail from – sender
to e-mail destination, can be a string or variable containing an e-mail, or a variable containing an e-mail array.
Subject Message title
Message Message to be sent
Type text message type to be sent: “T” for only text or “H” for text and/or html
copies e-mail recipient list (optional), can be a string or variable containing one or more e-mails, separated by “;”, or a variable containing an array of e-mails
