Tutorial: Select field using Ajax to reload select field

This example covers the development of a search application using the Ajax field reload.

Creating a new grid

1. Create a new grid application using the SQL Select Statement as below:

E.EmployeeID, E.LastName, E.FirstName, E.Title, E.TitleOfCourtesy, E.BirthDate, E.HireDate,
E.Address, E.PostalCode, E.Country, E.CityID, E.RegionID, E.HomePhone, E.Extension, E.Photo,
E.Notes, E.ReportsTo, E.PhotoPath, U.EmployeeID, U.TerritoryID
employees E INNER JOIN employeeterritories U ON E.EmployeeID = U.EmployeeID
INNER JOIN territories T ON U.TerritoryID = T.TerritoryID

2. Select the Fields Positioning option in the application menu and choose U.EmployeeID, E.LastName, E.FirstName, E.Title, E.BirthDate, E.HireDate, E.RegionID, U.TerritoryID and E.Country fields.

3. Open Grid folder and click in Grid Modules.

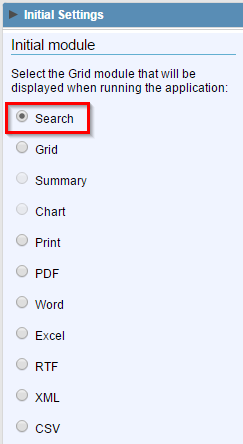

4. Set the Search as the initial module.

Choosing Search fields

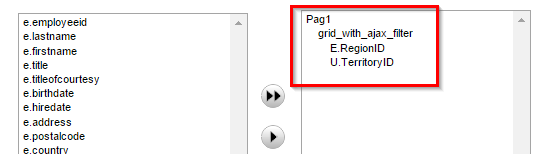

5. Open the Search folder and click in Advanced Search >> Select Fields.

6. Choose E.RegionID and U.TerritoryID fields.

Search Fields Settings

7. Open U.TerritoryID field, in search fields.

8. Change Data Type attribute to Select.

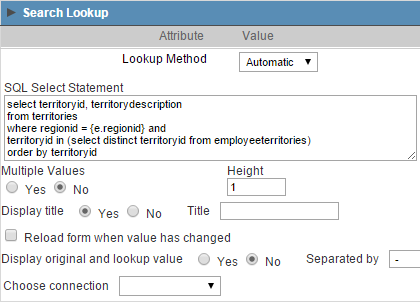

9. Open the Search Lookup block and configure the settings according to the image below.


SELECT territoryid, territorydescription
FROM territories
WHERE regionid = {e.regionid} AND
territoryid IN (SELECT DISTINCT territoryid FROM employeeterritories)
ORDER BY territoryid

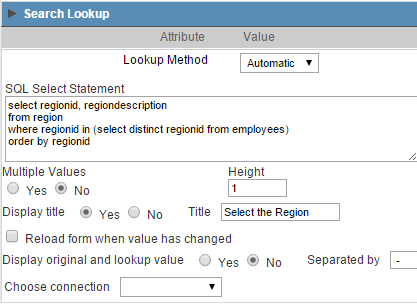

10. Open E.RegionID settings, modify the Data Type attribute to Select configure it as following .


SELECT regionid, regiondescription
FROM region
WHERE regionid IN (SELECT DISTINCT regionid FROM employees)
ORDER BY regionid

Enabling Ajax to reload the field

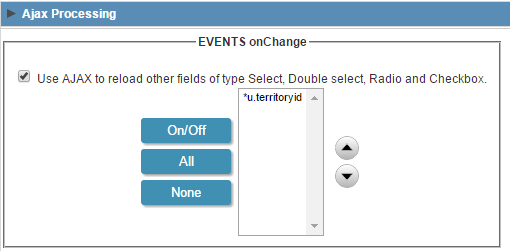

11. Open the Ajax Processing block and mark the option “Use AJAX to reload…”.

12. Click “Run application”
