Form Export Settings

Google Sheets Settings

This feature uses Scriptcase integration with the Google Sheets API, allowing the creation and filling of an online spreadsheet.

Its use depends on the configuration of an API profile, which must be configured beforehand and can be accessed in the Tools > API menu.

See the configuration options below.

General Settings

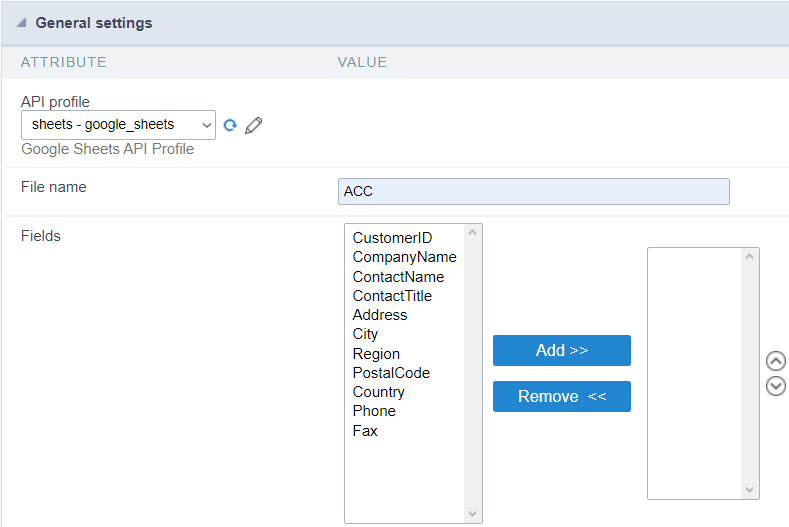

Google Sheets Configuration screen

To use this feature, you must configure a Google Sheets API Profile in the Tools > API menu.

  • API Profile - Defines the profile that will be used in the application. An API Profile stores the API credentials for use in projects and can be created in the Tools > API menu. If you have created a profile that is not being displayed, click the reload icon to update the field.

  • File name - Defines the name of the file where the data will be stored. This attribute only allows fixed text, without the use of variables or lang. If no file is identified on the server, a file with the name defined in this attribute will be created.

  • Fields - Defines the fields whose data will be sent to the server.

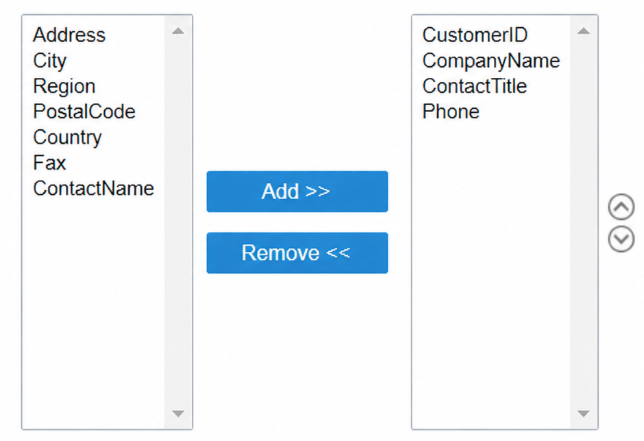

Fields attribute

1 - Add and Remove

Select the desired fields and use the buttons to add or remove the fields from the integration.

2 - Sorting

Select the fields and define the saving order in the file.

PDF Settings

PDF form export settings

In this section, define the options related to generating the application PDF, including file configuration, password protection, compression, orientation, format, print type, and opening behavior.

  • Configurable PDF - Defines whether the PDF can be configured in the application. When enabled, it allows you to adjust the PDF generation options according to the application’s needs.

  • Export with password - Defines whether the PDF will be generated with password protection. When enabled, the generated file may require a password to open or access its content.

  • Compressed PDF - Defines whether the generated PDF will be compressed. This option can reduce the final file size, making it easier to store and share.

  • PDF Orientation - Defines the PDF orientation. You can select portrait or landscape orientation, according to the desired format for printing or export.

  • PDF Format - Defines the page size used when generating the PDF, such as A4 or other available formats.

  • Print Type - Defines the print type that will be used in the PDF. The selected option determines whether the file will be generated in color or another format available in the settings.

  • Open PDF Directly - Defines whether the PDF will be opened directly after generation. When enabled, the file will be displayed automatically, without requiring a manual action to open it.

  • Print Background - Defines whether the background will be displayed in the PDF. When enabled, colors, images, or background styles configured in the application may be included in the generated file.

  • JS execution time - Defines the JavaScript execution time before generating the PDF. This time may be required to ensure that dynamically loaded elements are processed correctly before the file is created.

Print Settings

Form print

In this section, define the options related to application printing, including the generation of the print HTML, password protection, print type, and background display.

  • Configurable Print HTML - Defines whether HTML printing can be configured in the application. When enabled, it allows the configurable HTML print structure to be used, providing greater control over the content and format displayed in the print output.

  • Export with password - Defines whether the print or export will be generated with password protection. When enabled, the generated file may require a password to open or access its content.

  • Print Type - Defines the print type that will be used. The selected option determines whether the print output will be generated in color or another format available in the settings.

  • Print Background - Defines whether the background will be displayed during printing. When enabled, colors, images, or background styles configured in the application may be included in the printed content.
