Security Module

Making use of the security modules, you can implement a complete access rules for systems developed by ScriptCase. The process for the security module creation is quick and simple.

Scriptcase has five types of security, they are similar, diverging only in how the permissions are applied.

User Security Type

Under this security type all users have access to all applications. It works only for user authentication. Scriptcase will create one table to store the user and password information and validate the access using a login screen.

In this security type Scriptcase creates these tables:

  • User - Login, Password, Name, E-mail, Active, Activation Code and admin privileges
  • Logged users - Login, login date, Session, IP address

The table Logged users will be created only if the option Protect Logged users is checked during the Security Module creation.

Application Security Type

Under this type Scriptcase will also control login and password as the User Security and also create a restricted access control to the applications or system options according to the logged user. It is possible to define which applications is accessible to each user.

In this security type Scriptcase creates these tables:

  • User - Login, Password, Name, E-mail, Active, Activation Code and admin privileges
  • Application - Code, Description, Application type
  • User / Application - Login, Application Name, Access privileges, Insert privileges, Delete privileges, Update privileges, Export privileges, Print privileges
  • Logged users - Login, login date, Session, IP address

The table Logged users will be created only if the option Protect Logged users is checked during the Security Module creation.

Group Security Type

This type of security includes the options of User and Application types, however with the Group Security type you will group the users and define the permissions to access the applications or system options according to the groups. One user can belong to one or more groups.

In this security type Scriptcase creates these tables:

  • User - Login, Password, Name, E-mail, Active, Activation Code and admin privileges
  • Group - Description and ID
  • Application - Code, Description, Application type
  • User / Group - Login, Group ID
  • Group / Application - Group ID, Application name, Access privileges, Insert privileges, Delete privileges, Update privileges, Export privileges, Print privileges
  • Logged users - Login, login date, Session, IP address

The table Logged users will be created only if the option Protect Logged users is checked during the Security Module creation.

LDAP Security Type

The Lightweight Directory Access Protocol (LDAP) is an open, vendor-neutral, industry standard application protocol for accessing and maintaining distributed directory information services over an Internet Protocol (IP) network. You can use this protocol within Scriptcase Security module to authentication users in two ways: (Authentication only, performs only a simple user authentication, similar to User Security Type and the Total Control, where we can define the access by groups, similar to the Group Security Type.

In this security type Scriptcase creates these tables:

  • User - Login, Password, Name, E-mail, Active, Activation Code and admin privileges
  • Application - Code, Description, Application type
  • User / Application - Login, Application Name, Access privileges, Insert privileges, Delete privileges, Update privileges, Export privileges, Print privileges
  • Logged users - Login, login date, Session, IP address

The table Logged users will be created only if the option Protect Logged users is checked during the Security Module creation.

See how to create each security type:

User security creation

Security Type

The first step is to select the security type you wish.

selecting the security type

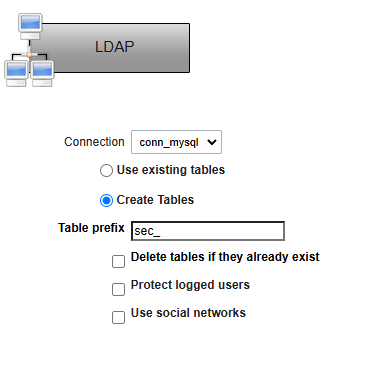

Connection

Then, you must select the database connection and some extra options to create the tables that make up the security module. Select the connection where you want to create the security tables

Connection

Sets the databse connection to create the security tables.

Use existing tables

Let you use existing tables in your database. These tables must have the same fields used by the Scriptcase security module, at least. We recommend you to use this option if you have already used Scriptcase to create the tables previously, to minimize errors.

Create tables

This option creates all security tables in the selected database.

Tables prefix

You can set a prefix to the table names of the Security Module. By default, Scriptcase uses “sec_”.

Delete if tables already exist

This option is available only when you select Create Tables. By choosing this option, The Security Module drops the tables with the same name and replace them with new tables.

Protect Logged Users

Prevent users to perform simultaneous logins in different sessions.

This step is essential if the option “Use existing tables” is selected. In this case, you must associate the fields from the existing tables to fields of security applications (applications generated by the Security Module).

In these cases, the existing database tables must contain a minimum number of fields so that they can be associated with the fields of security applications.

The required tables for each type of security are described at the beginning of this article.

If you have selected the option “Create tables”, in the previous step, it ssociates the fields automatically.

Settings

In this step, we can define the security module settings, such as User password encryption, the folder to create the applications, the log module, and other settings.

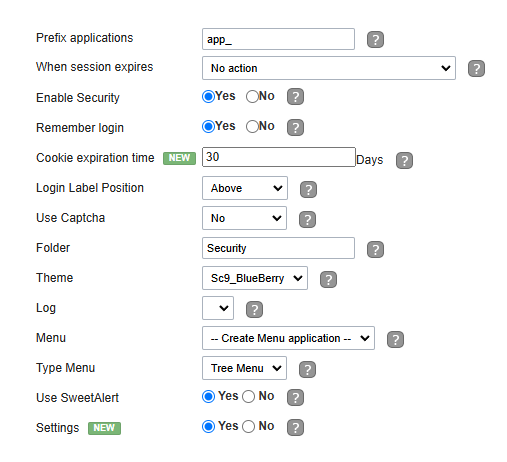

General settings

Applications Prefix

You can set a prefix to the application names of the Security Module.

When session expires

Define the behaviour when the session expires.

  • No action - The user continues using the application, but no saves after the session expires.
  • Redirect to login after the session expiration - The application returns to the login after expiring the session.
  • Display a message that the session has expired - Shows the message “session has expired” to the user.

Encryption

Use encryption to store the password in the table of users.

Enable Security

Activate the flag Application Security for all project applications.

Remember login

Activating the flag allows the user to remain logged in when returning to the system when the session ends, without having logged out.

Label Position at Login

Defines the Label positioning of the fields in relation to the data.

  • Ao Lado - Default value of the applications, placing the label on the right side of the input label to the Side
  • Acima - Positions the label above the input label Above
  • Abaixo - Positions the label below the input label Below
  • Watermark - Positions the label as Watermark.

Enable Captcha

It activates the captcha for the login application.

  • No - Does not display the captcha in the login application.
  • Captcha - Uses the built-in scriptcase library for captcha display.

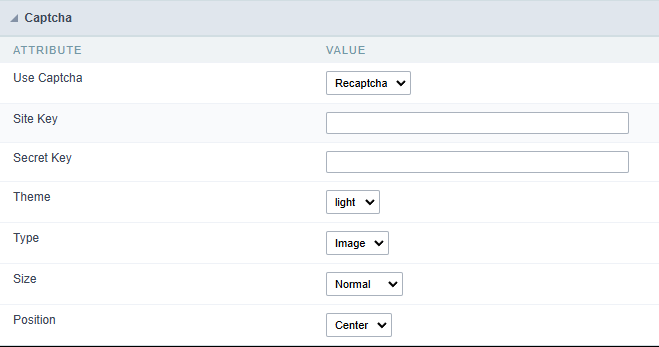

  • reCAPTCHA - Uses Google’s reCAPTCHA V2. To configure, click here.

Folder

The project folder name to store the applications generated by Security Module.

Theme

The theme to create the Security Module applications.

Log

This option is available if the project already has a Log Module. Click here and check out how to create a Log Module

This option is only available if your project already has a Menu Application. You can associate the existing Menu and include all applications generated by the Security Module to it. If you do not select an existing Menu here, it creates a new Menu Application.

Security Module menu type (option only available if you do not select an existing menu in the previous item)

Login

Here you can set the type and amount of characters allowed for the username and password fields.

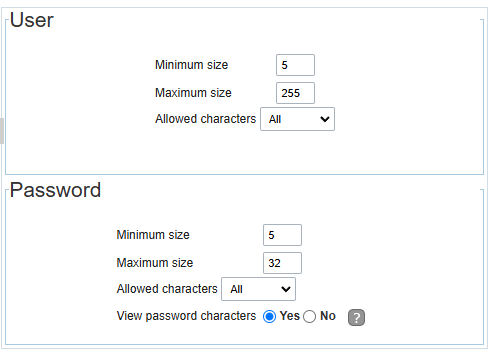

Username and password characters settings

Minimum size

Minimum amount of characters used by the user.

Maximum size

Maximum size of the characters used by the user.

Allowed characters

Define which characters are allowed when creating a password.

View password characters

This option toggles in the password field, allowing the displayed password to be displayed.

For the Show password characters option to work when the login application uses an HTML Control, the input must be surrounded by the SC_FIELD_INI_field and SC_FIELD_END_field tags

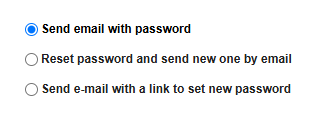

Password recovery settings

It defines the password recovery method in the project.

The password recovery options work only when the SMTP server is configured, please check the Email settings.

Password recovery settings

Send the password by e-mail

The system emails the user password just if the SMTP has been correctly set up, and the password is not using encryption.

Reset password and send new one by email

The system resets the password automatically and sends it to the user by email (just if the SMTP has been correctly set up).

The system emails the user a link to access an application and reset the password.

New Users

Settings for creating new users in the security system.

The options activation by email and send an email to admin work only when the SMTP server is configured properly, access Email settings to set it up.

New users creation settings

System allows new users registration

This option sets the availability of users registration directly in the login system. If you do not check this option, only users with administrative access can insert new users.

System requires activation by email

This option sets whether the new user must validate his registration by email to activate the account (Configure the email SMTP to use this option)

System requires the user to send an email to admin

This option sets whether the system administrator receives an email whenever a new user is registered. (Configure the email SMTP to use this option)

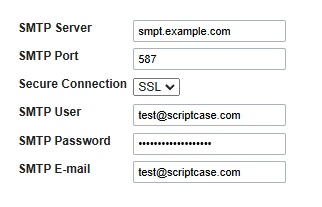

Email settings

This option sets the email provider from the system.

The information from this example may change according to the SMTP. We are using the Gmail SMTP for this example.

Email settings

SMTP Server

Enter the SMTP server address.

SMTP Port

Enter the SMTP server port. This information must comply with the secure connection option. Use 465 for SSL, 587 for TLS, or 25 for unsafe connection. If you do not inform the port, Scriptcase applies the default one: 25.

Secure Connection

Use SSL or TSL, or leave it blank for insecure connection.

SMTP User

Enter the SMTP User information.

SMTP Password

Enter the SMTP password information.

SMTP E-mail

Enter the SMTP outgoing email.

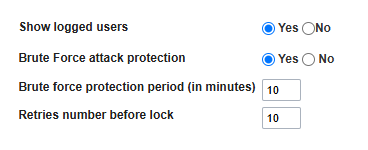

Logged Users

Defines the system behavior for login protection.

This option is available if you have checked Protect logged users during the connection step.

Protect logged users

Display logged users

If you check this option Scriptcase will also create with the Security Module a Grid Application to display a report with all users current logged on the system

Brute Force Attack Protection

Enables/disables the blocking of users after some unsuccessful access attempts.

Brute Force lockout time (in Minutes)

Time, in minutes, that the user will remain inaccessible after several unsuccessful access attempts. (Available only when rute Force Attack Protection is enabled)

Numbers of attempts before lock

Number of failed access attempts, until the protection is enabled. (Available only when enable protection for brute force attacks)

Enter the first record

This option inserts the first user into the security tables. This user has administrator privileges to manage the security system and add new users.

Register admin user

Login

This option sets the system administrator user.

Password

This option sets the system administrator password.

Name

This option sets the system administrator name.

E-mail

This option sets the system administrator user E-mail.

Group

This option sets the group name that receives administrator privileges.

The group option is available only for Group Security, and it is not available for other security module types.

Add applications

This option adds the applications already created in the project to the Security Module applications’ table.

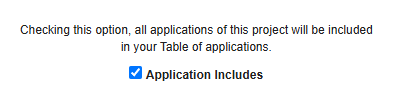

Insert project applications in the Security Module applications' table.

Save profile

Using this option, you save all settings during the Security Module creation. It can be used later for other projects.

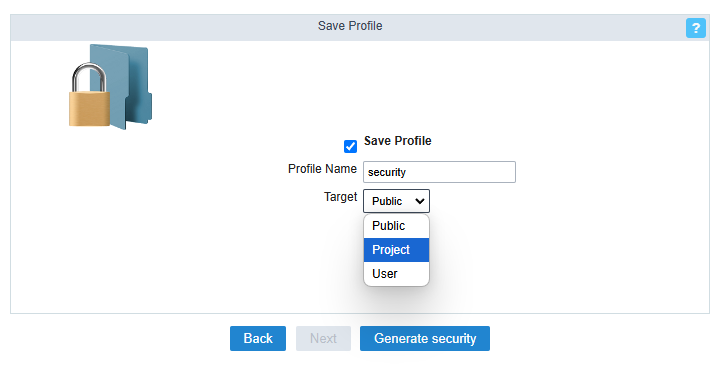

Save Profile

Save Profile

Allows you to save a profile with all the current security module settings.

Name

Profile name. It identifies the profile.

Target

This option sets what developers can use the saved profile afterward.

  • Public - Set the security profile available in any project of your Scriptcase.
  • Project - Set the security profile available only in the current project.
  • User - Set the security profile available only to the current Scriptcase user.

Using a saved security profile

You can select a saved profile at the beginning of a new Security Module creation. Using a saved security profile

Application security creation

Security Type

The first step is to select the security type you wish.

selecting the security type

Connection

Then, you must select the database connection and some extra options to create the tables that make up the security module. Select the connection where you want to create the security tables

Connection

Sets the databse connection to create the security tables.

Use existing tables

Let you use existing tables in your database. These tables must have the same fields used by the Scriptcase security module, at least. We recommend you to use this option if you have already used Scriptcase to create the tables previously, to minimize errors.

Create tables

This option creates all security tables in the selected database.

Tables prefix

You can set a prefix to the table names of the Security Module. By default, Scriptcase uses “sec_”.

Delete if tables already exist

This option is available only when you select Create Tables. By choosing this option, The Security Module drops the tables with the same name and replace them with new tables.

Protect Logged Users

Prevent users to perform simultaneous logins in different sessions.

This step is essential if the option “Use existing tables” is selected. In this case, you must associate the fields from the existing tables to fields of security applications (applications generated by the Security Module).

In these cases, the existing database tables must contain a minimum number of fields so that they can be associated with the fields of security applications.

The required tables for each type of security are described at the beginning of this article.

If you have selected the option “Create tables”, in the previous step, it ssociates the fields automatically.

Settings

In this step, we can define the security module settings, such as User password encryption, the folder to create the applications, the log module, and other settings.

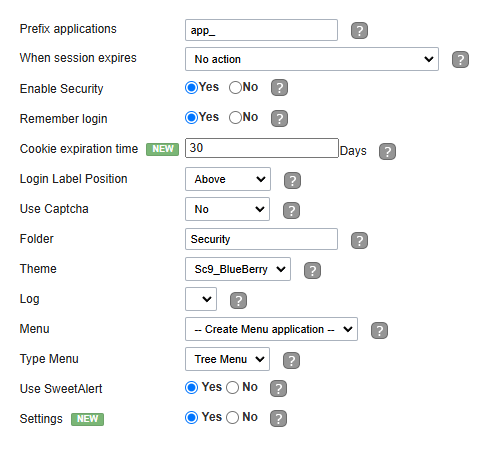

General settings

Applications Prefix

You can set a prefix to the application names of the Security Module.

When session expires

Define the behaviour when the session expires.

  • No action - The user continues using the application, but no saves after the session expires.
  • Redirect to login after the session expiration - The application returns to the login after expiring the session.
  • Display a message that the session has expired - Shows the message “session has expired” to the user.

Encryption

Use encryption to store the password in the table of users.

Enable Security

Activate the flag Application Security for all project applications.

Remember login

Activating the flag allows the user to remain logged in when returning to the system when the session ends, without having logged out.

Label Position at Login

Defines the Label positioning of the fields in relation to the data.

  • Ao Lado - Default value of the applications, placing the label on the right side of the input label to the Side
  • Acima - Positions the label above the input label Above
  • Abaixo - Positions the label below the input label Below
  • Watermark - Positions the label as Watermark.

Enable Captcha

It activates the captcha for the login application.

  • No - Does not display the captcha in the login application.
  • Captcha - Uses the built-in scriptcase library for captcha display.
  • reCAPTCHA - Uses Google’s reCAPTCHA V2. To configure, click here.

Folder

The project folder name to store the applications generated by Security Module.

Theme

The theme to create the Security Module applications.

Log

This option is available if the project already has a Log Module. Click here and check out how to create a Log Module

This option is only available if your project already has a Menu Application. You can associate the existing Menu and include all applications generated by the Security Module to it. If you do not select an existing Menu here, it creates a new Menu Application.

Security Module menu type (option only available if you do not select an existing menu in the previous item)

Login

Here you can set the type and amount of characters allowed for the username and password fields.

Username and password characters settings

Minimum size

Minimum amount of characters used by the user.

Maximum size

Maximum size of the characters used by the user.

Allowed characters

Define which characters are allowed when creating a password.

View password characters

This option toggles in the password field, allowing the displayed password to be displayed.

For the Show password characters option to work when the login application uses an HTML Control, the input must be surrounded by the SC_FIELD_INI_field and SC_FIELD_END_field tags

Password recovery settings

It defines the password recovery method in the project.

The password recovery options work only when the SMTP server is configured, please check the Email settings.

Password recovery settings

Send the password by e-mail

The system emails the user password just if the SMTP has been correctly set up, and the password is not using encryption.

Reset password and send new one by email

The system resets the password automatically and sends it to the user by email (just if the SMTP has been correctly set up).

The system emails the user a link to access an application and reset the password.

New Users

Settings for creating new users in the security system.

The options activation by email and send an email to admin work only when the SMTP server is configured properly, access Email settings to set it up.

New users creation settings

System allows new users registration

This option sets the availability of users registration directly in the login system. If you do not check this option, only users with administrative access can insert new users.

System requires activation by email

This option sets whether the new user must validate his registration by email to activate the account (Configure the email SMTP to use this option)

System requires the user to send an email to admin

This option sets whether the system administrator receives an email whenever a new user is registered. (Configure the email SMTP to use this option)

Email settings

This option sets the email provider from the system.

The information from this example may change according to the SMTP. We are using the Gmail SMTP for this example.

Email settings

SMTP Server

Enter the SMTP server address.

SMTP Port

Enter the SMTP server port. This information must comply with the secure connection option. Use 465 for SSL, 587 for TLS, or 25 for unsafe connection. If you do not inform the port, Scriptcase applies the default one: 25.

Secure Connection

Use SSL or TSL, or leave it blank for insecure connection.

SMTP User

Enter the SMTP User information.

SMTP Password

Enter the SMTP password information.

SMTP E-mail

Enter the SMTP outgoing email.

Logged Users

Defines the system behavior for login protection.

This option is available if you have checked Protect logged users during the connection step.

Protect logged users

Display logged users

If you check this option Scriptcase will also create with the Security Module a Grid Application to display a report with all users current logged on the system

Brute Force Attack Protection

Enables/disables the blocking of users after some unsuccessful access attempts.

Brute Force lockout time (in Minutes)

Time, in minutes, that the user will remain inaccessible after several unsuccessful access attempts. (Available only when rute Force Attack Protection is enabled)

Numbers of attempts before lock

Number of failed access attempts, until the protection is enabled. (Available only when enable protection for brute force attacks)

Enter the first record

This option inserts the first user into the security tables. This user has administrator privileges to manage the security system and add new users.

Register admin user

Login

This option sets the system administrator user.

Password

This option sets the system administrator password.

Name

This option sets the system administrator name.

E-mail

This option sets the system administrator user E-mail.

Group

This option sets the group name that receives administrator privileges.

The group option is available only for Group Security, and it is not available for other security module types.

Add applications

This option adds the applications already created in the project to the Security Module applications’ table.

Insert project applications in the Security Module applications' table.

Save profile

Using this option, you save all settings during the Security Module creation. It can be used later for other projects.

Save Profile

Save Profile

Allows you to save a profile with all the current security module settings.

Name

Profile name. It identifies the profile.

Target

This option sets what developers can use the saved profile afterward.

  • Public - Set the security profile available in any project of your Scriptcase.
  • Project - Set the security profile available only in the current project.
  • User - Set the security profile available only to the current Scriptcase user.

Using a saved security profile

You can select a saved profile at the beginning of a new Security Module creation. Using a saved security profile

Group security creation

Security Type

The first step is to select the security type you wish.

selecting the security type

Connection

Then, you must select the database connection and some extra options to create the tables that make up the security module. Select the connection where you want to create the security tables

Connection

Sets the databse connection to create the security tables.

Use existing tables

Let you use existing tables in your database. These tables must have the same fields used by the Scriptcase security module, at least. We recommend you to use this option if you have already used Scriptcase to create the tables previously, to minimize errors.

Create tables

This option creates all security tables in the selected database.

Tables prefix

You can set a prefix to the table names of the Security Module. By default, Scriptcase uses “sec_”.

Delete if tables already exist

This option is available only when you select Create Tables. By choosing this option, The Security Module drops the tables with the same name and replace them with new tables.

Protect Logged Users

Prevent users to perform simultaneous logins in different sessions.

This step is essential if the option “Use existing tables” is selected. In this case, you must associate the fields from the existing tables to fields of security applications (applications generated by the Security Module).

In these cases, the existing database tables must contain a minimum number of fields so that they can be associated with the fields of security applications.

The required tables for each type of security are described at the beginning of this article.

If you have selected the option “Create tables”, in the previous step, it ssociates the fields automatically.

Settings

In this step, we can define the security module settings, such as User password encryption, the folder to create the applications, the log module, and other settings.

General settings

Applications Prefix

You can set a prefix to the application names of the Security Module.

When session expires

Define the behaviour when the session expires.

  • No action - The user continues using the application, but no saves after the session expires.
  • Redirect to login after the session expiration - The application returns to the login after expiring the session.
  • Display a message that the session has expired - Shows the message “session has expired” to the user.

Encryption

Use encryption to store the password in the table of users.

Enable Security

Activate the flag Application Security for all project applications.

Remember login

Activating the flag allows the user to remain logged in when returning to the system when the session ends, without having logged out.

Label Position at Login

Defines the Label positioning of the fields in relation to the data.

  • Ao Lado - Default value of the applications, placing the label on the right side of the input label to the Side
  • Acima - Positions the label above the input label Above
  • Abaixo - Positions the label below the input label Below
  • Watermark - Positions the label as Watermark.

Enable Captcha

It activates the captcha for the login application.

  • No - Does not display the captcha in the login application.
  • Captcha - Uses the built-in scriptcase library for captcha display.
  • reCAPTCHA - Uses Google’s reCAPTCHA V2. To configure, click here.

Folder

The project folder name to store the applications generated by Security Module.

Theme

The theme to create the Security Module applications.

Log

This option is available if the project already has a Log Module. Click here and check out how to create a Log Module

This option is only available if your project already has a Menu Application. You can associate the existing Menu and include all applications generated by the Security Module to it. If you do not select an existing Menu here, it creates a new Menu Application.

Security Module menu type (option only available if you do not select an existing menu in the previous item)

Login

Here you can set the type and amount of characters allowed for the username and password fields.

Username and password characters settings

Minimum size

Minimum amount of characters used by the user.

Maximum size

Maximum size of the characters used by the user.

Allowed characters

Define which characters are allowed when creating a password.

View password characters

This option toggles in the password field, allowing the displayed password to be displayed.

For the Show password characters option to work when the login application uses an HTML Control, the input must be surrounded by the SC_FIELD_INI_field and SC_FIELD_END_field tags

Password recovery settings

It defines the password recovery method in the project.

The password recovery options work only when the SMTP server is configured, please check the Email settings.

Password recovery settings

Send the password by e-mail

The system emails the user password just if the SMTP has been correctly set up, and the password is not using encryption.

Reset password and send new one by email

The system resets the password automatically and sends it to the user by email (just if the SMTP has been correctly set up).

The system emails the user a link to access an application and reset the password.

New Users

Settings for creating new users in the security system.

The options activation by email and send an email to admin work only when the SMTP server is configured properly, access Email settings to set it up.

New users creation settings

System allows new users registration

This option sets the availability of users registration directly in the login system. If you do not check this option, only users with administrative access can insert new users.

System requires activation by email

This option sets whether the new user must validate his registration by email to activate the account (Configure the email SMTP to use this option)

System requires the user to send an email to admin

This option sets whether the system administrator receives an email whenever a new user is registered. (Configure the email SMTP to use this option)

Email settings

This option sets the email provider from the system.

The information from this example may change according to the SMTP. We are using the Gmail SMTP for this example.

Email settings

SMTP Server

Enter the SMTP server address.

SMTP Port

Enter the SMTP server port. This information must comply with the secure connection option. Use 465 for SSL, 587 for TLS, or 25 for unsafe connection. If you do not inform the port, Scriptcase applies the default one: 25.

Secure Connection

Use SSL or TSL, or leave it blank for insecure connection.

SMTP User

Enter the SMTP User information.

SMTP Password

Enter the SMTP password information.

SMTP E-mail

Enter the SMTP outgoing email.

Logged Users

Defines the system behavior for login protection.

This option is available if you have checked Protect logged users during the connection step.

Protect logged users

Display logged users

If you check this option Scriptcase will also create with the Security Module a Grid Application to display a report with all users current logged on the system

Brute Force Attack Protection

Enables/disables the blocking of users after some unsuccessful access attempts.

Brute Force lockout time (in Minutes)

Time, in minutes, that the user will remain inaccessible after several unsuccessful access attempts. (Available only when rute Force Attack Protection is enabled)

Numbers of attempts before lock

Number of failed access attempts, until the protection is enabled. (Available only when enable protection for brute force attacks)

Enter the first record

This option inserts the first user into the security tables. This user has administrator privileges to manage the security system and add new users.

Register admin user

Login

This option sets the system administrator user.

Password

This option sets the system administrator password.

Name

This option sets the system administrator name.

E-mail

This option sets the system administrator user E-mail.

Group

This option sets the group name that receives administrator privileges.

The group option is available only for Group Security, and it is not available for other security module types.

Add applications

This option adds the applications already created in the project to the Security Module applications’ table.

Insert project applications in the Security Module applications' table.

Save profile

Using this option, you save all settings during the Security Module creation. It can be used later for other projects.

Save Profile

Save Profile

Allows you to save a profile with all the current security module settings.

Name

Profile name. It identifies the profile.

Target

This option sets what developers can use the saved profile afterward.

  • Public - Set the security profile available in any project of your Scriptcase.
  • Project - Set the security profile available only in the current project.
  • User - Set the security profile available only to the current Scriptcase user.

Using a saved security profile

You can select a saved profile at the beginning of a new Security Module creation. Using a saved security profile

LDAP Creation - Authentication Only

Security Type

The first step is to select the security type you wish.

Select the security type

Connection

Then, you must select the database connection and some extra options to create the tables that make up the security module.

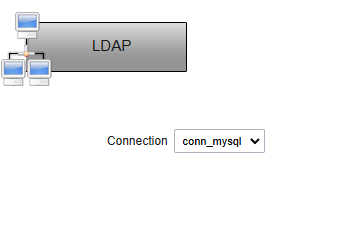

Selecting the connection

Settings

In this step, we can define the security module settings, such as User password encryption, the folder to create the applications, the log module, and other settings.

General settings

Applications Prefix

You can set a prefix to the application names of the Security Module.

When session expires

Define the behaviour when the session expires.

  • No action - The user continues using the application, but no saves after the session expires.
  • Redirect to login after the session expiration - The application returns to the login after expiring the session.
  • Display a message that the session has expired - Shows the message “session has expired” to the user.

Encryption

Use encryption to store the password in the table of users.

Enable Security

Activate the flag Application Security for all project applications.

Enable Captcha

It activates the captcha for the login application.

  • No - Does not display the captcha in the login application.
  • Captcha - Uses the built-in scriptcase library for captcha display.
  • reCAPTCHA - Uses Google’s reCAPTCHA V2. To configure, click here.

Folder

The project folder name to store the applications generated by Security Module.

Theme

The theme to create the Security Module applications.

Log

This option is available if the project already has a Log Module. Click here and check out how to create a Log Module

This option is only available if your project already has a Menu Application. You can associate the existing Menu and include all applications generated by the Security Module to it. If you do not select an existing Menu here, it creates a new Menu Application.

Security Module menu type (option only available if you do not select an existing menu in the previous item)

Login

Here you can set the type and amount of characters allowed for the username and password fields.

Username and password characters settings

Minimum size

Minimum amount of characters used by the user.

Maximum size

Maximum size of the characters used by the user.

Characters allowed

Define which characters are allowed when creating a password.

LDAP

Under this option, you must inform your LDAP server settings.

LDAP server information

Server

Enter here the LDAP server IP.

DN

Enter the input attributes.

Port

Enter here the port for access to the server. Default port is 389.

Sufix

Enter the user suffix.

Registering the admin user

This option inserts the first user into the security tables. This user has administrator privileges to manage the security system and add new users.

Registering the admin user

Login

This option sets the system administrator user.

Password

This option sets the system administrator password.

Name

This option sets the system administrator name.

E-mail

This option sets the system administrator user E-mail.

Save profile

Using this option, you save all settings during the Security Module creation. It can be used later for other projects.

Save Profile

Save Profile

Allows you to save a profile with all the current security module settings.

Name

Profile name. It identifies the profile.

Target

This option sets what developers can use the saved profile afterward.

  • Public - Set the security profile available in any project of your Scriptcase.
  • Project - Set the security profile available only in the current project.
  • User - Set the security profile available only to the current Scriptcase user.

Using a saved security profile

You can select a saved profile at the beginning of a new Security Module creation.

Using a saved security profile

LDAP Creation - Total control

Security Type

The first step is to select the security type you wish.

Select the security type

Connection

Then, you must select the database connection and some extra options to create the tables that make up the security module. Select the connection where you want to create the security tables

Connection

Sets the databse connection to create the security tables.

Use existing tables

Let you use existing tables in your database. These tables must have the same fields used by the Scriptcase security module, at least. We recommend you to use this option if you have already used Scriptcase to create the tables previously, to minimize errors.

Create tables

This option creates all security tables in the selected database.

Tables prefix

You can set a prefix to the table names of the Security Module. By default, Scriptcase uses “sec_”.

Delete if tables already exist

This option is available only when you select Create Tables. By choosing this option, The Security Module drops the tables with the same name and replace them with new tables.

Protect Logged Users

Prevent users to perform simultaneous logins in different sessions.

This step is essential if the option “Use existing tables” is selected. In this case, you must associate the fields from the existing tables to fields of security applications (applications generated by the Security Module).

In these cases, the existing database tables must contain a minimum number of fields so that they can be associated with the fields of security applications.

The required tables for each type of security are described at the beginning of this article.

If you have selected the option “Create tables”, in the previous step, it ssociates the fields automatically.

Settings

In this step, we can define the security module settings, such as User password encryption, the folder to create the applications, the log module, and other settings.

General settings

Applications Prefix

You can set a prefix to the application names of the Security Module.

When session expires

Define the behaviour when the session expires.

  • No action - The user continues using the application, but no saves after the session expires.
  • Redirect to login after the session expiration - The application returns to the login after expiring the session.
  • Display a message that the session has expired - Shows the message “session has expired” to the user.

Encryption

Use encryption to store the password in the table of users.

Enable Security

Activate the flag Application Security for all project applications.

Enable Captcha

It activates the captcha for the login application.

  • No - Does not display the captcha in the login application.
  • Captcha - Uses the built-in scriptcase library for captcha display.
  • reCAPTCHA - Uses Google’s reCAPTCHA V2. To configure, click here.

Folder

The project folder name to store the applications generated by Security Module.

Theme

The theme to create the Security Module applications.

Log

This option is available if the project already has a Log Module. Click here and check out how to create a Log Module

This option is only available if your project already has a Menu Application. You can associate the existing Menu and include all applications generated by the Security Module to it. If you do not select an existing Menu here, it creates a new Menu Application.

Security Module menu type (option only available if you do not select an existing menu in the previous item)

Login

Here you can set the type and amount of characters allowed for the username and password fields.

Username and password characters settings

Minimum size

Minimum amount of characters used by the user.

Maximum size

Maximum size of the characters used by the user.

Characters allowed

Define which characters are allowed when creating a password.

Email settings

This option sets the email provider from the system.

The information from this example may change according to the SMTP. We are using the Gmail SMTP for this example.

Email settings

SMTP Server

Enter the SMTP server address.

SMTP Port

Enter the SMTP server port. This information must comply with the secure connection option. Use 465 for SSL, 587 for TLS, or 25 for unsafe connection. If you do not inform the port, Scriptcase applies the default one: 25.

Secure Connection

Use SSL or TSL, or leave it blank for insecure connection.

SMTP User

Enter the SMTP User information.

SMTP Password

Enter the SMTP password information.

SMTP E-mail

Enter the SMTP outgoing email.

LDAP

Under this option, you must inform your LDAP server settings.

LDAP server information

Server

Enter here the LDAP server IP.

DN

Enter the input attributes.

Port

Enter here the port for access to the server. Default port is 389.

Sufix

Enter the user suffix.

Logged Users

Defines the system behavior for login protection.

This option is available if you have checked Protect logged users during the connection step.

Protect logged users

Display logged users

If you check this option Scriptcase will also create with the Security Module a Grid Application to display a report with all users current logged on the system

Brute Force Attack Protection

Enables/disables the blocking of users after some unsuccessful access attempts.

Brute Force lockout time (in Minutes)

Time, in minutes, that the user will remain inaccessible after several unsuccessful access attempts. (Available only when rute Force Attack Protection is enabled)

Numbers of attempts before lock

Number of failed access attempts, until the protection is enabled. (Available only when enable protection for brute force attacks)

Registering the admin user

This option inserts the first user into the security tables. This user has administrator privileges to manage the security system and add new users.

Registering the admin user

Login

This option sets the system administrator user.

Password

This option sets the system administrator password.

Name

This option sets the system administrator name.

E-mail

This option sets the system administrator user E-mail.

Add applications

This option adds the applications already created in the project to the Security Module applications’ table.

Insert project applications in the Security Module applications' table.

Save profile

Using this option, you save all settings during the Security Module creation. It can be used later for other projects.

Save Profile

Save Profile

Allows you to save a profile with all the current security module settings.

Name

Profile name. It identifies the profile.

Target

This option sets what developers can use the saved profile afterward.

  • Public - Set the security profile available in any project of your Scriptcase.
  • Project - Set the security profile available only in the current project.
  • User - Set the security profile available only to the current Scriptcase user.

Using a saved security profile

You can select a saved profile at the beginning of a new Security Module creation.

Using a saved security profile

reCAPTCHA

ReCAPTCHA is an API provided by Google for forms. It adds security, preventing automatic submission of forms through robots.

reCAPTCHA sample:

reCAPTCHA V2 in execution

  1. First, we must request an API Key to activate reCAPTCHA into a Scriptcase application by following the steps below:

To get a Site key and Secret Key go to the link: https://www.google.com/recaptcha/admin#list. See the image:

Google's API ReCaptcha homepage

Label

It is a project identifier to create the reCAPTCHA keys.

Choose the type of reCaptcha

We must choose the option reCAPTCHA V2.

Domains

We can insert multiple domains (one per line) to limit the API uses.

  1. Then, we need to accept the Terms of Service (“Accept the reCAPTCHA Terms of Service”).

  2. When clicking on Register, the page refreshes and shows the integration of reCAPTCHA information. There we can get the Site Key and Secret Key:

API's key and Secret Key reCATPCHA

  1. Now, we can set the Scriptcase application security:

Captcha version 2

Site Key

Key generated by Google after reCAPTCHA project creation.

Secret Key

Key generated by Google after reCAPTCHA project creation.

Watch a video of reCAPTCHA example:
