Linux

In Scriptcase, we only have one driver to connect to SQLite: SQLite PDO. If you are using your own pre-configured environment, the SQLite extension must be enabled manually in PHP.

Prerequisites

If you are using a manual installation on Linux, you will need to install the SQLite php extension. See below for how to do this:

NOTE: If you are using an automatic Scriptcase installation, the SQLite driver will be enabled automatically.

1 - Log into your Linux terminal and type this line below according to your operating system to install the SQLite PDO driver.

Ubuntu CentOS
sudo apt-get install php7.3-sqlite sudo yum install php-sqlite

2 - Make sure that the SQLite driver is enabled in your Scriptcase diagnostic:

  • When you go to the top menu Help > Diagnostics, you can easily find it through the interface.

Diagnostic Access - Help Menu

  • Or, by accessing your Scriptcase installation path:

127.0.0.1/scriptcase/diagnosis.php or domain.com/scriptcase/diagnosis.php

Creating a connection in Scriptcase

Here is how to create a connection in your Scriptcase project using the SQLite database.

1 - Access any project from within your Scriptcase.

2 - Click on the New Connection icon to create a connection.

Creating a new connection

or go to the Database > New Connection menu.

Creating a new connection

After that, a new page will appear with all the database connections.

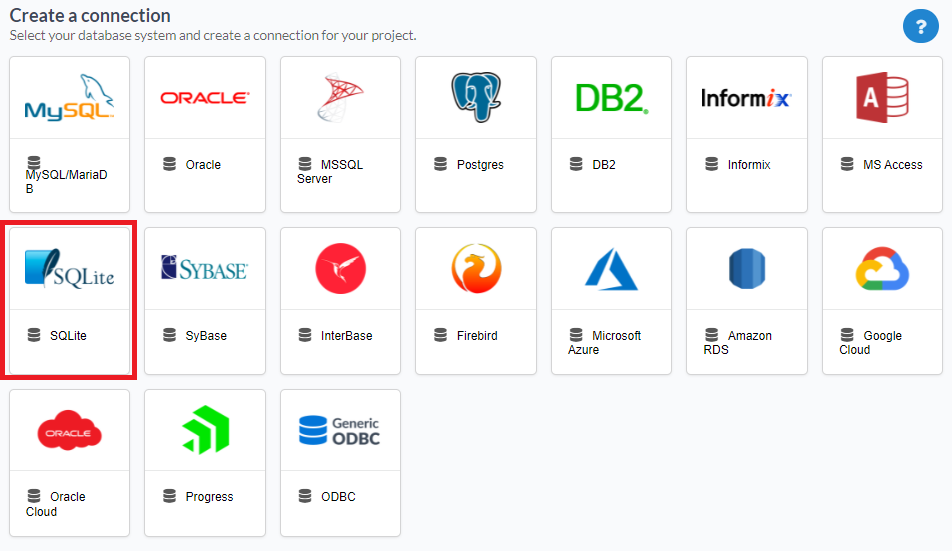

3 - Select the SQLite connection.

Database connection selection

Connection

Enter the parameters for connecting to your SQLite database as follows:

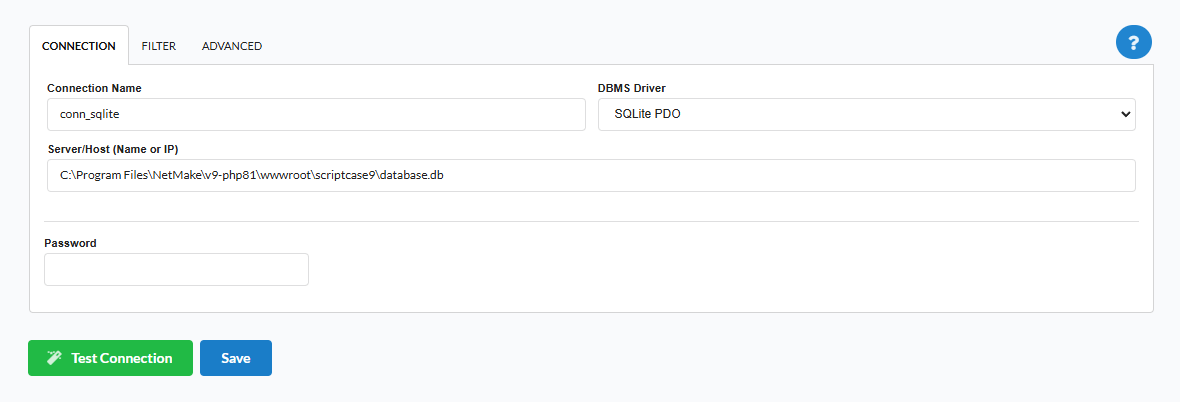

Database Connection

  • Connection Name: Set the name of your new connection. By default, Scriptcase adds the prefix conn along with the database name.

  • DBMS Driver: Select the SQLite Driver used to connect. By default, the driver will be SQLite PDO.

  • Server/Host(Name or IP): Enter the full path to your SQLite database file. EX: C:\Apache24\htdocs\client_data

  • Password: Enter the password to complete the authentication process if you have it set for your DB file.

  • Test Connection: Click this button to get a response from the Scriptcase request to see if the parameters you entered are correct.

Testing the database connection

Filter

By accessing this tab, you can configure which items from the Database will be displayed in the connection, depending on the owner or not.

Database connection filtering

Show

Allows the SQLite connection to see tables, views, system tables and procedures depending on the items selected by the user. By default, the items Tables and Views are already selected by Scriptcase.

  • Tables: By selecting this option, the tables in your database will be displayed.
    • By default, Scriptcase enables this option.

  • Views: By selecting this option, the views of your database will be displayed.
    • By default, Scriptcase enables this option.

  • System tables: By selecting this option, the system tables of your database will be displayed.

  • Procedures: When you select this option, the procedures from your database will be displayed.

Searches

Allows you to define which tables and owners are displayed.

  • Tables: You can define in this option which tables will be displayed. The setting can contain a PREFIX% or name of the tables to be displayed.
    • By default, Scriptcase leaves this option empty.
    • Ex:

    Example of prefix usage


  • Owner: Inform the user who sees the inserted tables for display.
    • User must be in capital letters, as in the example above

  • Show: Choose whether tables are displayed for the owner entered.

NOTE: By using table filtering, you eliminate unnecessary tables for your project and improve the performance of your database connection.

Advanced

In this tab, you have access to settings specific to the connection. Changes made in this section impact the data display and performance of the application.

Advanced database connection configuration

  • client_encoding: Select the encoding used in your database. In the example above, we used client_encoding UTF-8.

  • Decimal separator: Select the separator type for decimal records, between comma and period.
    • By default, period . is selected as the separator.

  • Persistent connection: Set whether connections will be closed after your scripts run in Scriptcase applications.
    • By default, Scriptcase disables this option.

  • Use the schema before table name: Set whether the database schema is displayed before the table names.
    • By default, Scriptcase enables this option.

    • Ex:

    Exemplo de utilização do esquema


Doubts or Connection Problems?

Contact our Support Team in case of connection problems or questions regarding this database.
