Connection to Amazon RDS Oracle ODBC

If you do not have the ODBC. driver enabled, check our documentation below on how to enable it in Scriptcase for connection.

CAUTION: If you do not have an Amazon RDS database created, check how to create it by clicking here.

Creating a connection to Scriptcase

See below how to create a connection in your Scriptcase project, using the enabled Driver and the Oracle database.

1 - Access a project from your Scriptcase.

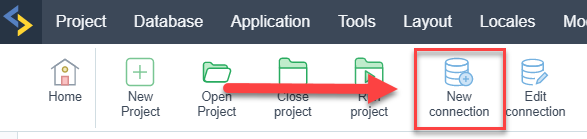

2 - Click the New Connection icon to create a connection

Creating a new connection

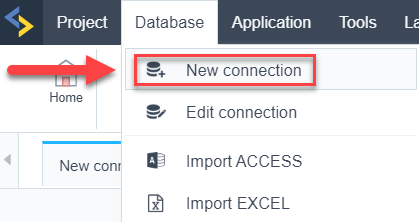

or access the Database > New connection menu.

Creating a new connection

After that, a screen will appear with all database connections.

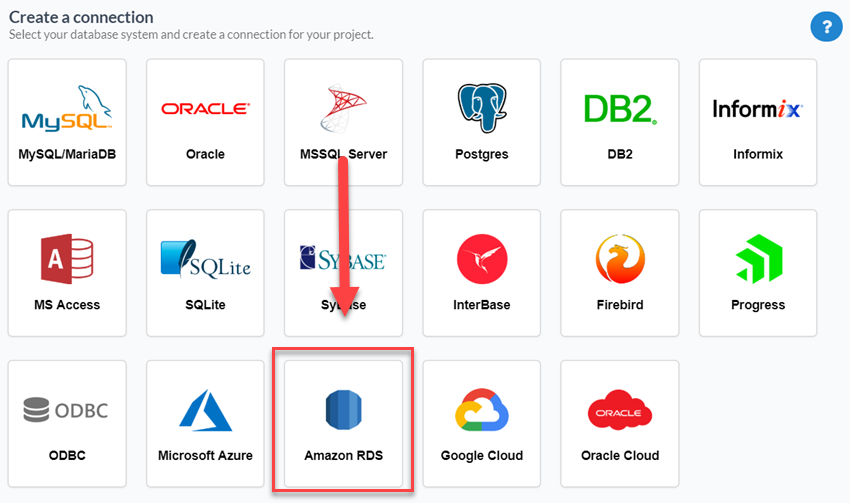

3 - Select the Amazon RDS connection.

Selecting the database connection

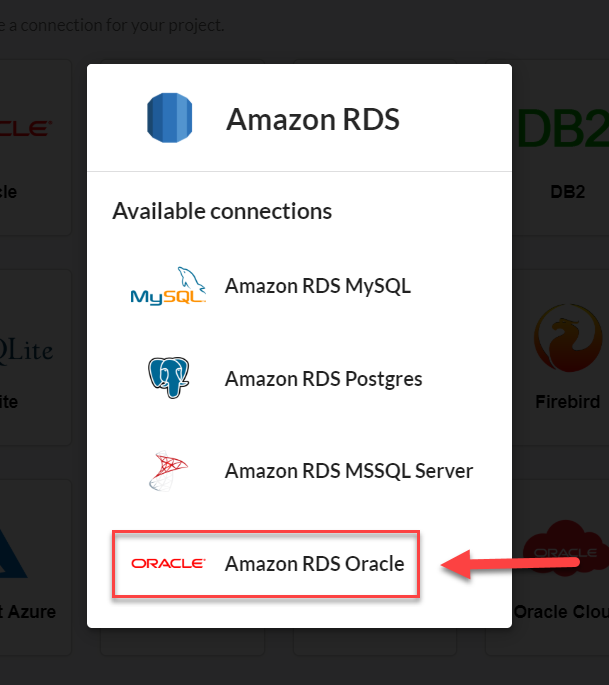

4 - And choose the Amazon RDS Oracle database.

Selecting the database

Connection

Enter the parameters for connecting to your Amazon RDS Oracle database as follows:

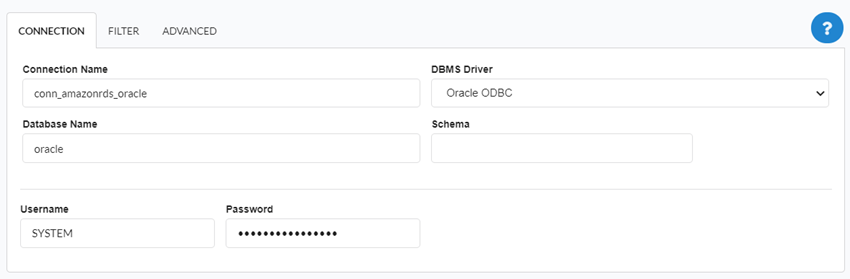

Connecting to the database

  • Connection name: Define the name of your new connection. By default, Scriptcase adds the prefix conn along with the database name.

  • DBMS Driver: Select the Oracle Driver to connect. In this example, we use the Oracle ODBC Driver.

  • Database Name: Inform the Data Source Name configured.
    • EX: oracle
  • Scheme: Inform the Scheme of specific tables created for the use of the informed user.
    • This item is optional if you do not have a schema configured in your database.

  • Username: Inform the user to authenticate the connection to your Oracle database.
    • For Oracle connections, the user must be capitalized, as in the example.
  • Password: Enter the password to complete the authentication process.

  • Test connection: Click this button to get a response to the Scriptcase request to find out if the parameters entered are correct.

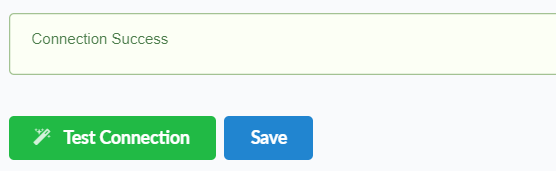

Testing the database connection

Filter

Accessing this tab, you can configure which Database items will be displayed on the connection, depending on the owner or not.

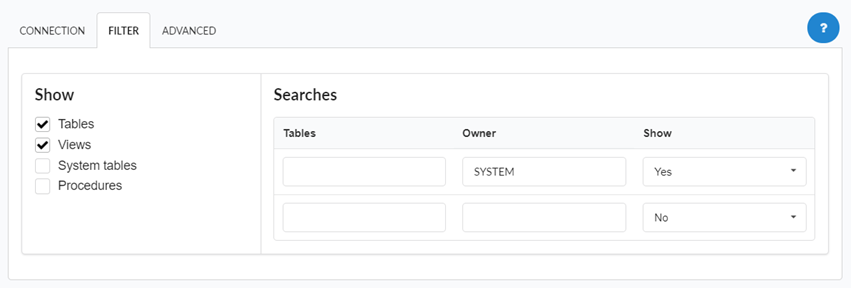

Filtering the database connection

Show


It allows the Oracle connection to see tables, views, system tables and procedures depending on the items selected by the user. By default, the items Tables and Views are already selected by Scriptcase.

  • Tables: Selecting this option, the tables in your database will be displayed.
    • By default, Scriptcase enables this option .
  • Views: By selecting this option, the views of your database will be displayed.
    • By default, Scriptcase enables this option .
  • System Tables: Selecting this option, the system tables of your database will be displayed.

  • Procedures: By selecting this option, the procedures of your database will be displayed.

Searches


Allows you to define which tables and owners are displayed.

  • Tables: You can define in this option which tables will be displayed. The configuration can contain a PREFIX%% or name of the tables to display.
    • By default, Scriptcase leaves this option empty.
    • EX:

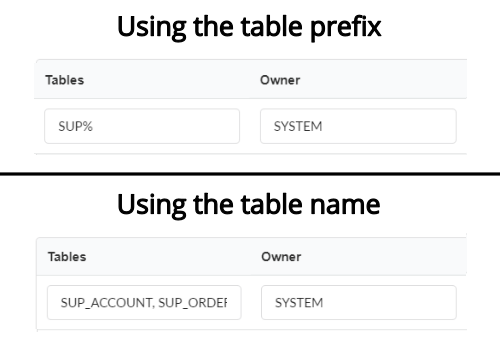

    Example of using the prefix


  • Owner: Inform the user who sees the tables informed for display.
    • User must be capitalized as in the example above.
  • View: Choose whether tables for the informed owner are displayed.

NOTE: By using table filtering, you eliminate unnecessary tables for your project and improves the performance of your Oracle database connection.

Advanced

In this tab, you have access to specific settings for the connection. The settings made in this session impact the data display and application performance.

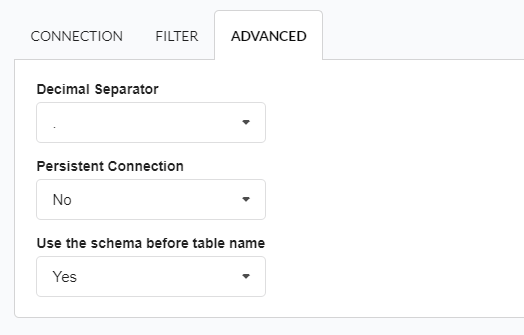

Advanced database connection configuration

  • Decimal Separator: Select the separator type of the decimal records, between comma and period.
    • By default, the . dot is selected as a separator.
  • Persistent Connection: Define whether connections will be terminated after the execution of your scripts in Scriptcase applications.
    • By default, Scriptcase disables this option .

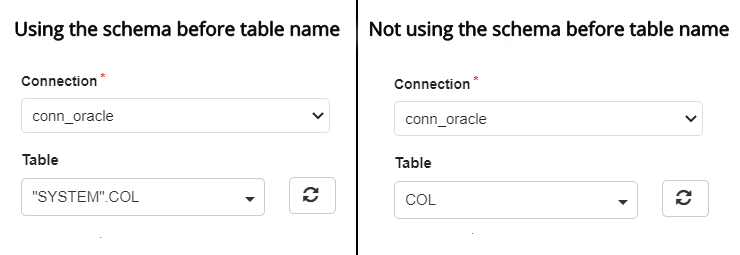

  • Use the schema before the table name: Define whether the database schema will be displayed before the table names.
    • By default, Scriptcase enables this option.

    • EX:

    Example of using the scheme


Questions or Connection Problems?

Contact our support in case of connection problems or questions regarding this database.
