Date

General Settings

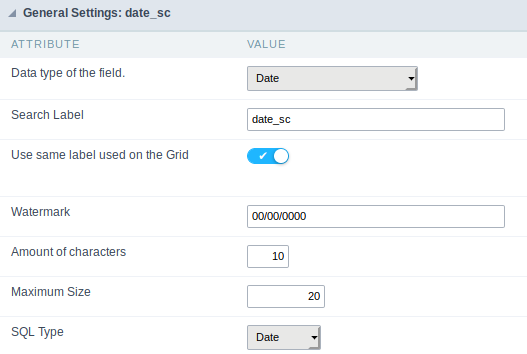

Date field Configuration Interface.

  • Data Type : Define the type of field for the application. When set to Date, you can inform a date.
  • Search Label : Defines the title of a field in the application. For example: if the field is defined in the database as cmp_name_client, it will be more clear for the comprehension of the user if the name would be “Client Name”.
  • Use same label used on the Grid : When this option is enabled, it allows to field to use the same title defined in the grid, in this case the Search Label is not used.
  • Watermark: Displays a watermark in the field input.
  • Amount of characters : Define the amount of characters allowed for the field.
  • Maximum Size : Defines the size of the field.
  • SQL Type : Informs the datatype of field in the database.

Values format

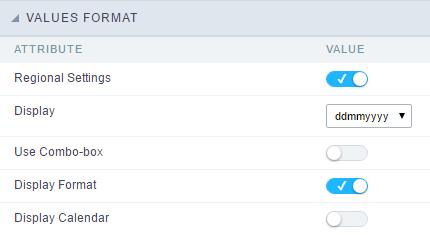

Date Field Format of Values with Regional Settings.

  • Regional Settings : Allows to apply the Regional Settings to format the dates of the field. When not enabled, it will be displayed the date separator attribute.
  • Date separator : Allows you to inform the separator symbol for the date.
  • Display : Select the format of the day for display.
  • Internal Format : Allows to define the format the field when the SQL type is different from Date. You need to use the characters A, M and D that correspond to Year, Month and Day.
  • Use Combo-box : Allows you to select the date using a combo-box.
    • Year as Combo : Allows to use the year combo to select the date.
      • Initial Year : First year displayed in the combo.
      • Actual Year + : Display the current plus the amount of years informed.
  • Month in full textual : Displays the Month format in Full.
  • Display Calendar : Enables the a calendar icon beside the field, this allows to select the date from a calendar with the format already setup.
    • New Calendar : Defines if the JQuery calendar (New Calendar) is going to be displayed or the old format.
    • Years Limit : Amount of years displayed in the calendar.
    • View week number : Displays the number of the week in the application.
    • Additional months : Displays the additional months of the calendar.
    • Show Combo year and month : Displays the year and month of the calendar in the combo box.

Field Behavior

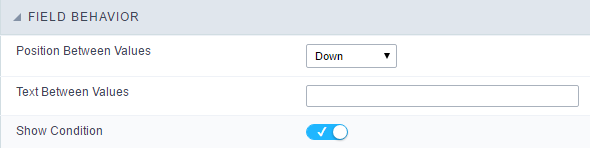

Date Field Behavior Interface of the Search Configuration.

  • Position between values : This option sets the position that objects will be displayed.
  • Text between values : Text that will appear between values.
  • Show Condition : When enabled, it displays the condition of the search in the Grid, it will only work if there is at least one option selected.

Special Conditions

Date Field Special Conditions.

  • All Period : Searches for all periods of dates.
  • Today : Searches in today’s date.
  • Yesterday : Searches in yesterday’s date.
  • Last 7 days : Searches the last 7 days. Ex: ((01/01/2017 01/07/2017).
  • This month : Searches the dates from the first day of the current month.
  • Last month : Searches the dates from the first day of lasts month.

Display Settings

The Display Settings allows to define the CSS for the fields individually. For each Display Settings of Scriptcase, exists the same attributes available for this interface.

Display Settings Interface.

  • CSS of the Title
    • Font : Allows to choose the font type, that will be applied to the application field title.
    • Font Size : Allows to choose the the font size, that will be applied to the application field title.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the field, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the title of the field.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the title.
    • Horizontal Alignment : Allows to position the label of the field in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the label of the field in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the title of the field.
    • Height : To define a height for the title of the field.
  • CSS of the Field
    • Font : Allows to choose the font type, that will be applied to the application field.
    • Font Size : Allows to choose the the font size, that will be applied to the application field.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the field, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the field.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the field.
    • Horizontal Alignment : Allows to position the field in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the field in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the field.
    • Height : To define a height for the field.
  • CSS of the Input Object
    • Font : Allows to choose the font type, that will be applied to the Input Object. For example: Radio, Select, Text, etc
    • Font Size : Allows to choose the the font size, that will be applied to the application field.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the Input Object, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the Input Object.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the Input Object.
    • Horizontal Alignment : Allows to position the Input Object in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the Input Object in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the Input Object.
    • Height : To define a height for the Input Object.

Help Settings

Allow the developer to set up instructions and hints about the field’s use, allowing the developer to help the users about the system usage.

Help Configuration Interface.

Description of the settings attributes.

Help Description

In this area, you can set up a text that will be shown in the application according to the type of help selected below.

Help Type

Pop-up - Display a default icon ! beside the field. To display the message just click in the icon that a Pop-up will be displayed with the help text.

Help Display Type Configuration Interface.

Hint - Display a default icon ! beside the field. When the mouse is above the icon a help text will be displayed.

Help Display Type Configuration Interface.

The icon displayed when selecting the types Hint or Pop-up vary according to the theme that is being used in the application. This icon can be modified in the CSS Buttons.

Text - Display a text inside of a <span></span> beside the field.

Help Display Type Configuration Interface.

Help button position

Allow to set up where the help button will be displayed in the field, there are two options:

Beside: The help icon will be displayed beside the field.
Column: The help icon will be displayed beside the label of the field.
