Application

Settings

With this interface, you can set the common attributes of the app.

Application Configuration Interface Application Settings Interface

  • Attributes
    • Application Code : It is the name that defines an application. An app can be renamed at the List of Application.
    • Description : This field contains a brief description of the application objectives.
    • Documents Path : The absolute path to store uploaded documents in the application.
    • Image Directory : The filesystem directory to store the application images.
    • Application images : Import images into the application to allows using them in the application.
    • Language : Set the default language of the application. Display all the application hints and messages in the selected language.
    • Share Location Variable : Define if the app shares the regional settings with other applications through a session variable.
    • Charset : Define a specific charset to use in the application.
    • Share Theme Variable : Define if the app shares the Theme settings with other applications through a session variable.
    • Folder : Define the project folder that contains the app.
    • Edit by Project : Define if other project developers can edit the application.
    • Timeout : Set the session runtime timeout in seconds. If the value is Zero, it assumes the default timeout of the PHP.
    • HelpCase Link : It allows to associate a HelpCase file with the application.
  • Image Viewer: Activates the image viewer features in the running application. By clicking on the image the user can drag, rotate, invert, and enlarge the selected image.

Visualizador de imagens.

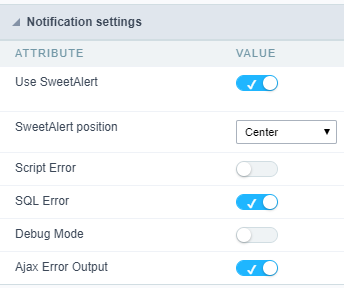

Notification Settings

Notification Settings Interface.

  • Use SweetAlert: Use the SweetAlert to display messages from the application. When this option is active, it will replace the browser’s “confirm” and “alert”.

  • SweetAlert position using Toast : The position to display error messages on the application.

  • Script Error : Allows displaying the line code where there is an error..
  • SQL Error : Allows displaying the SQL statement if it got an error.
  • Debug Mode : Runs the application in Debug mode, showing all SQL statements the application is executing.
  • Ajax Error Output : Enables the Ajax alert for debugging errors.

Navigation

This interface allows defining the navigating behavior of the application

Navigation Interface. Navigation Interface.

Exit URL

URL to where the user goes when he clicks on the “exit” button.

Close on Exit

Close the browser window when the user clicks on the “exit” button.

Redirect URL

Redirect to another URL in case there aren’t any global variables available.

Redirect Variable

Creates a variable with the application name and sends it to the redirected application.

Global Variables

This screen shows all global variables used in the application

The global variable is an external parameter required for running the application. The application can include global variables in the WHERE clause, field definitions and names, event programming, and so on.

You can define global variables by using square brackets ([variable]). You can pass the parameters to the application through one of the methods: Session, Post, and Get

IMPORTANT: if you need to use Database Identifiers in your tables, we recommend using the double quotation marks( “ ) instead of the brackets( [ ] ) because of the conflict with the of Global Variables syntax{:target=”_blank”} Scriptcase. Using the brackets as database identifiers may lead to problems in the Scriptcase applications.

Global variables Interface. Global variables Interface.

Example:

Select CustomerID, CustomerName from Customers WHERE CustomerID = '[v_customerid]'

We do not recommend using session variables (global variables) with the same name as the table fields.

In this case, the variable v_customerid is displaying in the global variables configuration.

Global variables configuration Interface. Global variables configuration Interface.

Attribute

It shows the variable’s name in the application.

Value

Defines the behavior of the variables, divided into three blocks, they are:

Scope

Defines how the application receives the variable. A variable defined as the POST method in the app does not receive value if it comes with the GET method. Those are the methods available:

  • Session: Defines that the variable must be created as a PHP session variable by another application.
  • GET: Defines that the variable must be passed by the URL, that is, visible by the browser.
  • POST: Defines that the variable must be passed through the POST method of an HTML form.
    Settings
  • Optional: Check it to don’t validate the variable at runtime.
Type (In / Out)

Defines whether the variable comes from another application (In), or it is starting in the current app (Out).

Description

Indicates where the application is using the variable.
