Buttons

In addition to the applications buttons, you can also create new manual buttons. These buttons will be placed on the application toolbar.

Creating new buttons Creating new buttons

Creating a button

To create a new button, click the “new button” and type a name and the button type.

Form button types: (JavaScript, PHP, and Ajax).

Form button types Form button types

Deleting a button

To delete a button click on the icon next to the name of the button in the application menu (recycle bin).

Deleting a button Deleting a button

JavaScript

Display Mode

You can configure the display mode of the javascript button in Image, Button or Link.

Button

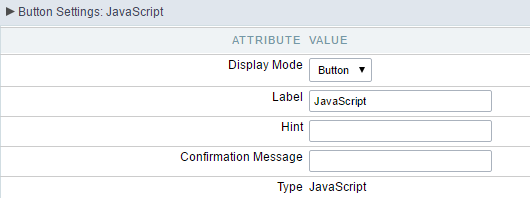

Setting up the Button Display mode for the javascript button. Setting up Javascript Button.

Display Mode You can select the display mode for the javascript button in this option.
Label Text of the button that will be display in the application while executing.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
Type Description of the created button.


Setting up the Image Display mode for the javascript button. Setting up Javascript Button.

Display Mode You can select the display mode for the javascript button in this option.
Icon Allows you to inform the icon that will be displayed on the button while the execution of the application.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
Type Description of the created button.

Setting up the Link Display mode for the javascript button. Setting up Javascript Button.

Display Mode You can select the display mode for the ajax button in this option.
Label Text of the button that will be display in the application while executing.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
CSS Style Name of the CSS class, style created in the layout editor.
Type Description of the created button.

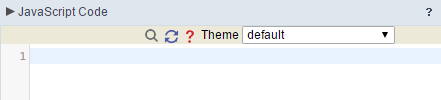

Code Block

javascript Button code block. Javascript button coding block.

In this block, only JavaScript is accepted.

PHP

Display Mode

You can configure the display mode of the PHP button in Image, Button or Link.

Button

Setting up the Button Display mode for the PHP button. Setting up PHP Button.

Display Mode You can select the display mode for the link button in this option.
Label Text of the button that will be display in the application while executing.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
Reload quantity of records This option is used to update the amount of records in the application.
Type Description of the created button.
Target Defines the window destination where the code will run (Open in the same Window, Open in another Window, Modal).


Setting up the Image Display mode for the PHP button. Setting up PHP Button.

Display Mode You can select the display mode for the link button in this option.
Icon Allows you to inform the icon that will be displayed on the button while the execution of the application.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
Reload quantity of records This option is used to update the amount of records in the application.
Type Description of the created button.
Target Defines the window destination where the code will run (Open in the same Window, Open in another Window, Modal).

Setting up the Link Display mode for the PHP button. Setting up PHP Button.

Display Mode You can select the display mode for the link button in this option.
Label Text of the button that will be display in the application while executing.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
CSS Style Name of the CSS class, style created in the layout editor.
Reload quantity of records This option is used to update the amount of records in the application.
Type Description of the created button.
Target Defines the window destination where the code will run (Open in the same Window, Open in another Window, Modal).

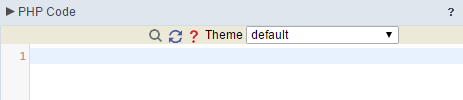

Code Block

PHP Button code block. *Ajax button coding block. *

In this block, you can use macros, PHP code and JavaScript.

Link

Display Mode

You can configure the display mode of the link button in Image, Button or Link.

Button

Setting up the Button Display mode for the link button. Setting up Link Button.

Display Mode You can select the display mode for the link button in this option.
Label Text of the button that will be display in the application while executing.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
Type Description of the created button.


Setting up the Image Display mode for the link button. Setting up Link Button.

Display Mode You can select the display mode for the link button in this option.
Icon Allows you to inform the icon that will be displayed on the button while the execution of the application.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
Type Description of the created button.

Setting up the Link Display mode for the link button. Setting up link Button.

Display Mode You can select the display mode for the ajax button in this option.
Label Text of the button that will be display in the application while executing.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
CSS Style Name of the CSS class, style created in the layout editor.
Type Description of the created button.
  • Selecting the applications

Choosing the application for the button link. Choosing the application for the button link.

You should select an application to be called from the button link.

  • Link Parameters

Choosing the parameters for the button link. Choosing the parameters for the button link.

Field Allows you to use an existing field from the current application as a parameter for the link.
Variable Allows you to use a global variable from the current application as a parameter for the link.
Fixed Allows you to inform a fixed value as a parameter for the link.
Empty No value will be passed as a parameter for the link.
  • Link Properties ( Grid )

Configuring the properties for the link button. Configuring the properties for the link button when the destined application is a Grid.

Link Operation Mode How the link will open (Open in the same Window, Open in another Window, Modal ).
Exit URL for the target application URL or an application that be redirect to when exiting the Grid application.
Initial Mode Allows you to define the initial mode of the grid application ( Search or Grid ).
Number of Lines Allows you to define the amount of lines displayed in the Grid.
Number of Columns Allows you to define the amount of columns displayed in the Grid.
Paging Enable the paging in the Grid.
Display Header Enable the Grid Header.
Active Navigation Buttons Enable the navigation button (First, Back, Next and Last) in the Grid.
  • Link Properties ( Form )

Configuring the properties for the link button. Configuring the properties for the link button when the destined application is a Form.

Link Operation Mode How the link will open (Open in the same Window, Open in another Window, Modal ).
Exit URL for the target application URL or an application that be redirect to when exiting the Form application.
Enable insert button on target application Enable the “New” button in the Form Application.
Enable update button on target application Enable the “Update” button in the Form Application.
Enable delete button on target application Enable the “Delete” button in the Form Application.
Enable navigation button on target application Enable the navigation button (First, Back, Next and Last) in the Form.
Enable button to edit a grid record Enable the buttons that allow you to edit the records of a Grid

Ajax

Display Mode

You can configure the display mode of the Ajax button in Image, Button or Link.

Button

Setting up the Button Display mode for the Ajax button. Setting up Ajax Button.

Display Mode You can select the display mode for the Ajax button in this option.
Label Text of the button that will be display in the application while executing.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
Type Description of the created button.


Setting up the Image Display mode for the Ajax button. Setting up Ajax Button.

Display Mode You can select the display mode for the Ajax button in this option.
Icon Allows you to inform the icon that will be displayed on the button while the execution of the application.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
Type Description of the created button.

Setting up the Link Display mode for the Ajax button. Setting up Ajax Button.

Display Mode You can select the display mode for the ajax button in this option.
Label Text of the button that will be display in the application while executing.
Hint Hint message for the button. (Displayed when the mouse hovers the button).
Confirmation Message Displays a confirmation message when the button is clicked. If not informed this is not informed, no message will appear.
CSS Style Name of the CSS class, style created in the layout editor.
Type Description of the created button.

Code Block

Ajax Button code block. Ajax button coding block.

In this block, you can use macros, Ajax code and JavaScript.
