Passing parameters in a Container

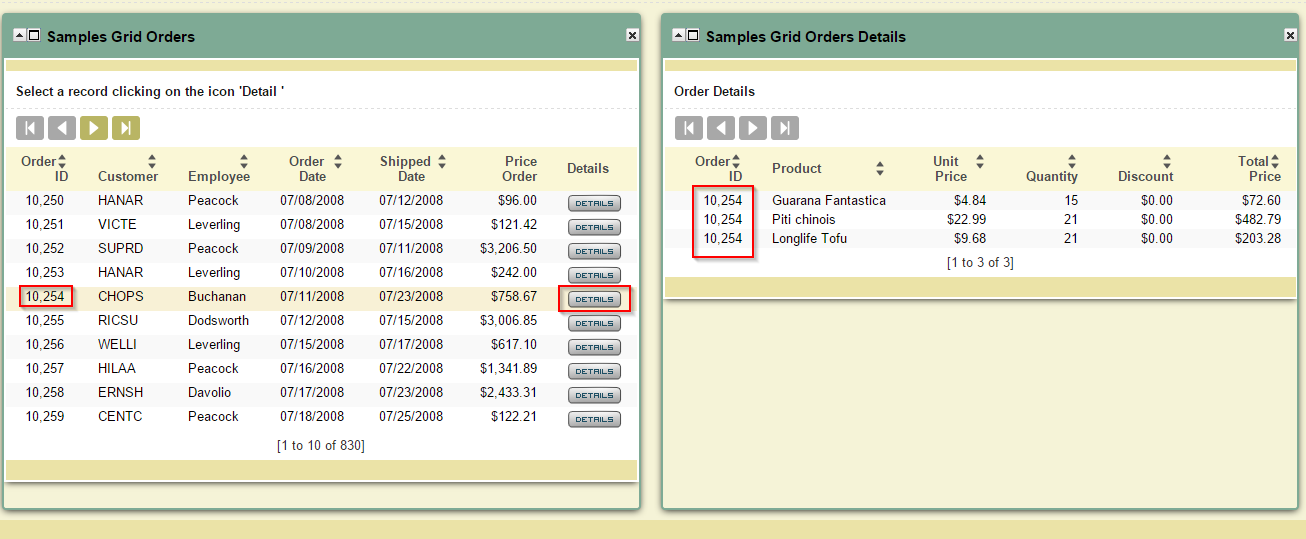

In this example we will see how to pass PHP parameters from an application into a widget of a Container to another application on another widget. In the Container, we will create a widget with an application displaying a Grid with orders and another widget with the details of the order selected in the first widget.


Creating the application for order details

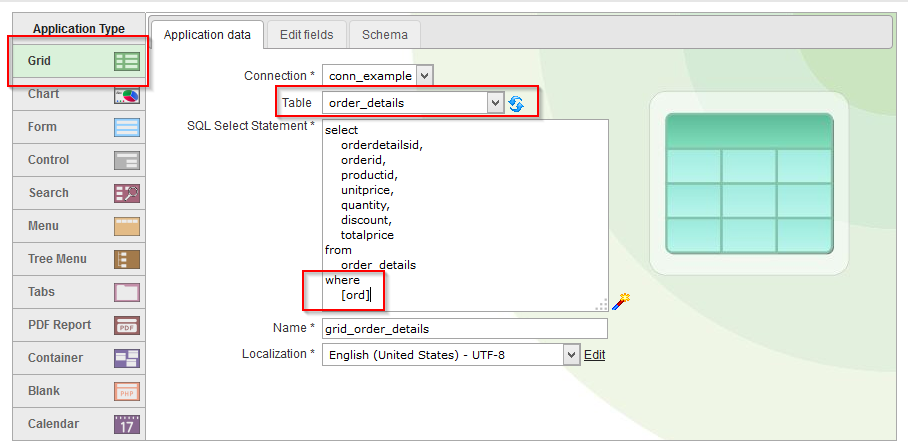

1. Create a new Grid based on the application of order_details table, but let's change the Select command to add a WHERE clause with a variable (where [ord]).

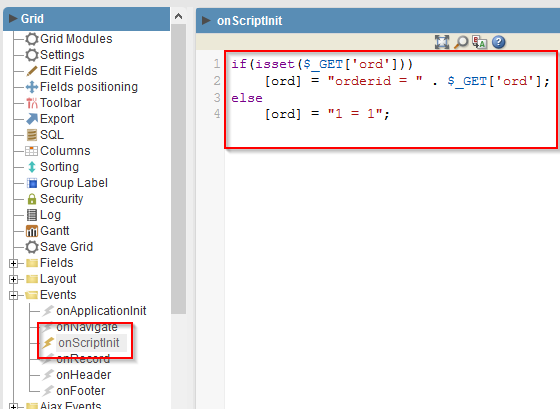

2. Go to the Events >> onScriptInit item in the application menu to assign values to the variable used in the SQL command of the application


[ord] = "orderid = " . $_GET['ord'];
[ord] = "1 = 1";

3. Generate the application source code.



Creating the application of Order

1. Create a new Grid application nbased on the orders table.

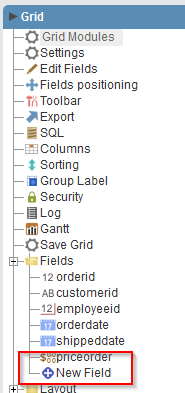

2. Access the Fields >> New Field item in the application menu

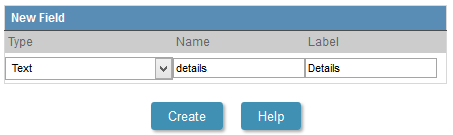

3. Create one field of type text called "details".

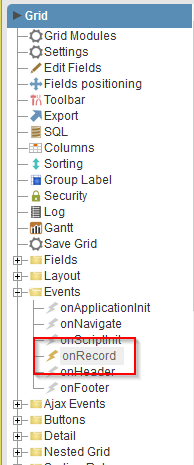

4. Go to the Events >> onRecord item in the application menu


5. Copy and paste the following code

{details} = "<a href=\"javascript:void%200\" onclick=\"parent.document.getElementById('id-iframe-widget4').contentWindow.document.location.href = '../samples_grid_order_details/samples_grid_order_details.php'+'?ord=".{orderid}."';\" > <img src='../_lib/img/details.png' border = '0' Title='Details'/></a>";


Attribute Explanation
<a href=\"javascript:void%200\" ></a> Create the link
parent.document.getElementById('id-iframe-widget4') Iframe used in reference to the second widget
.contentWindow.document.location.href = '../samples_grid_order_details/samples_grid_order_details.php'+'?ord=".{orderid} Reloads the application that will be called, passing a parameter via GET
<img src='../_lib/img/details.png' border = '0' Title='Details'/> Image used in the application

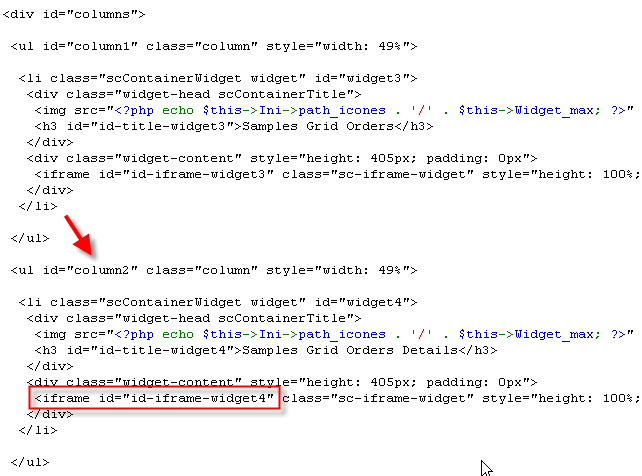

Note: We can only know the ID of the desired iframe after creating the Container application. After creating it, go to "View >> Source Code" item in the menu Scriptcase, with the application of Container opened for editing. Select to display the code of index.php and look for id-iframe-widget.



6. Generate the application source code.



Creating a New Container

1. Now let's create a new application container.

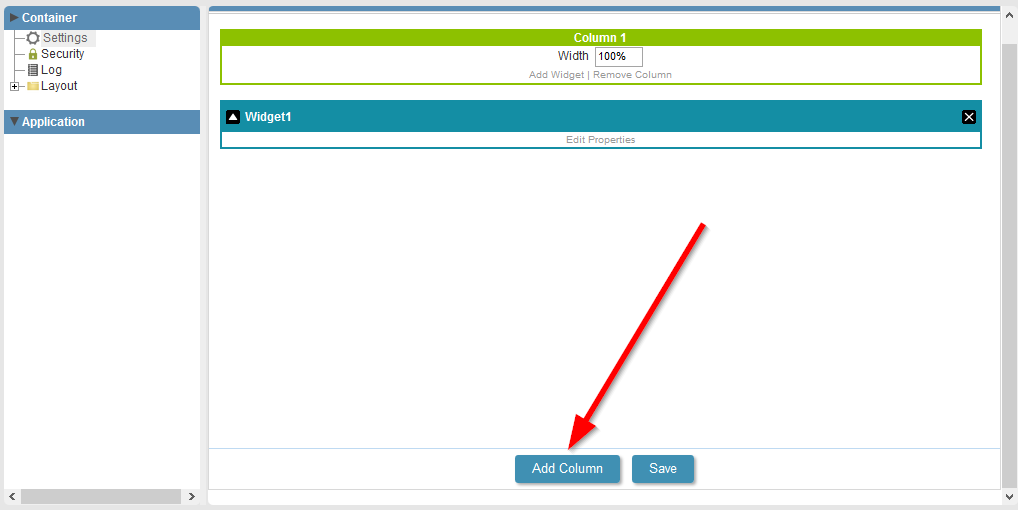

2. In the application menu, go to Settings >> Container and click Add Column.

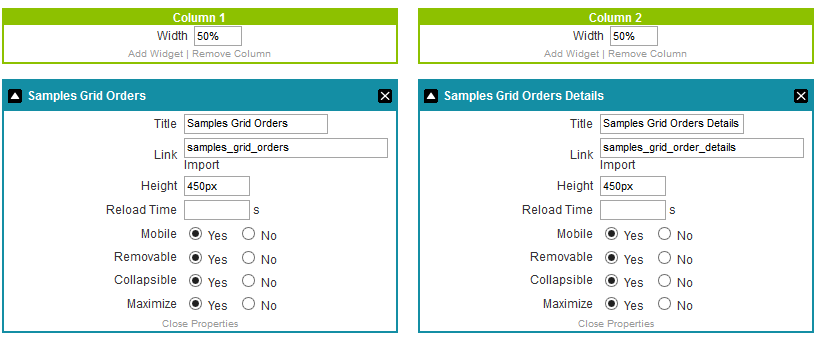

3. Click the Edit Properties link to select applications to be displayed in widgets


4. Click the Run button on the toolbar.
