Connection to Azure MSSQL ODBC

If you do not have the MSSQL Server NATIVE SRV, MSSQL Server NATIVE SRV PDO and MSSQL Server ODBC drivers enabled, check below our documentation on how to enable both in Scriptcase for connection.

ATTENTION: If you do not have an Azure MSSQL Server base created, check how to create it by clicking here.

Creating the DSN for connection

To connect to the MSSQL Server ODBC Driver, you need to configure a System DSN. Follow the steps described below to perform this configuration.

ATTENTION: ODBC must be created on the same server where ScriptCase is installed.

1 - Access your ODBC Data Source Manager and select according to your architecture. We will select the x64 version:

Gerenciador ODBC

2 - When entering the ODBC Data Sources Administrator, select the DSN System tab and click on _Add to create your connection to your Database.

Criando DSN

3 - After that, it is necessary to select the Driver to connect to the MSSQL Server. Select the Driver: ODBC Driver 11 for SQL Server.

Selecionando Driver ODBC

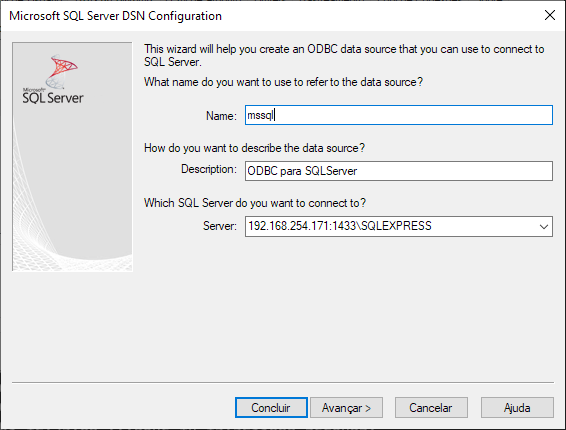

4 - Now, you need to define the name of the DSN, the description and the database connection server.

Nomeando DSN

  • Name: Enter the name that the DSN will have so that you can use it in Scriptcase.

  • Description: Add a description for the DSN.

  • Server: inform the server, port and database instance that you will connect to.

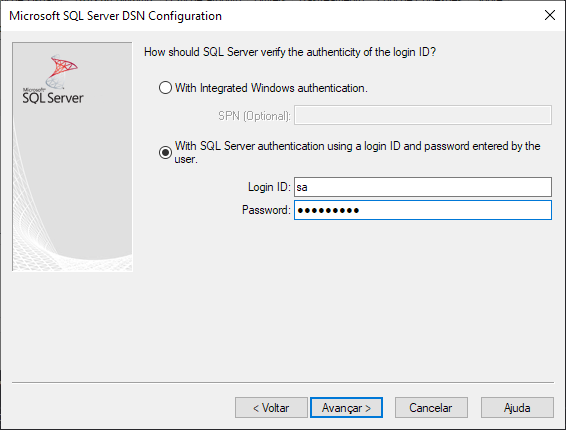

4.1 - After informing the data, click on the Next button to inform the user name and password required for connection.

DSN credenciais

  • Login ID: Inform the user to authenticate with the database.

  • Password: Enter the corresponding password to authenticate with the informed user.

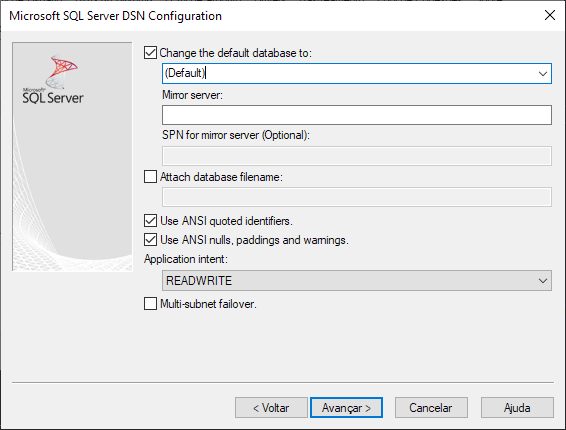

4.2 - Now, click Next to select the default database.

Default Database

To finish, click Next and finally, click Finish.

Creating a connection to Scriptcase

See below how to create a connection in your Scriptcase project, using the Enabled Driver (MSSQL Server ODBC) and the Azure MSSQL Server database.

1 - Access a project from your Scriptcase.

2 - Click the New Connection icon to create a connection

Creating a new connection

or access the Database> New connection menu.

Creating a new connection

After that, a screen will appear with all database connections.

3 - Select the Microsoft Azure connection.

Selecting the database connection

4 - And choose the Azure SQL database.

Selecting the database

Connection

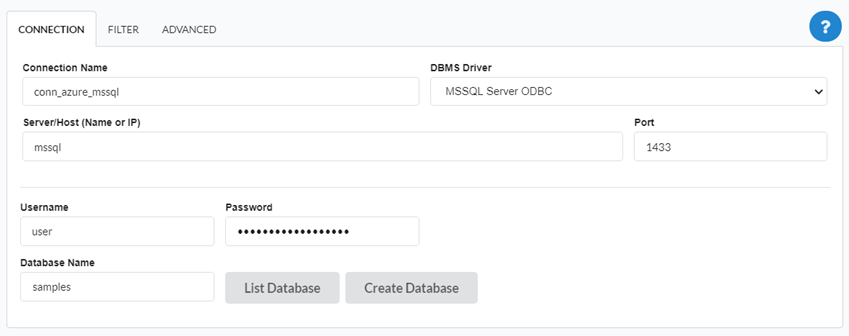

Enter the parameters for connecting to your Azure MSSQL Server database as follows:

Connecting to the database

  • Connection name: Define the name of your new connection. By default, Scriptcase adds the prefix conn along with the database name.

  • DBMS Driver: Select the MSSQL Server Driver to connect. In this example, we use the MSSQL Server NATIVE SRV PDO Driver.

  • Server/Host (Name or IP): Enter the Data Source Name of the Azure server.
  • EX: mssql

  • Port: Enter the port to connect to the MSSQL Server. By default, the port defined is 1433.

  • Database Name: List and select the database you will connect to.
  • EX: samples

  • Username: Inform the user to authenticate the connection to your database.

  • Password: Enter the password to complete the authentication process.

  • Test connection: Click this button to get a response to the Scriptcase request to find out if the parameters entered are correct.

Testing the database connection

Filter

Accessing this tab, you can configure which Database items will be displayed on the connection, depending on the owner or not.

Filtering the database connection

Show


It allows the connection to see tables, views, system tables and procedures depending on the items selected by the user. By default, the items Tables and Views are already selected by Scriptcase.

  • Tables: Selecting this option, the tables in your database will be displayed.
    • By default, Scriptcase enables this option .
  • Views: By selecting this option, the views of your database will be displayed.
    • By default, Scriptcase enables this option .
  • System Tables: Selecting this option, the system tables of your database will be displayed.

  • Procedures: By selecting this option, the procedures of your database will be displayed.

Searches


Allows you to define which tables and owners are displayed.

  • Tables: You can define in this option which tables will be displayed. The configuration can contain a PREFIX%% or name of the tables to display.
    • By default, Scriptcase leaves this option empty .
    • EX:

    Example of using the prefix


  • Owner: Inform the user who sees the tables informed for display.
    • User must be capitalized as in the example above .
  • View: Choose whether to display the tables for the informed owner.

NOTE: By using table filtering, you eliminate unnecessary tables for your project and improves the performance of your database connection.

Advanced

In this tab, you have access to specific settings for the connection. The settings made in this session impact the data display and application performance.

Advanced database connection configuration

  • client_encoding: Select the encoding used in your database. In the example above, we use the client_encoding utf8.
    • The utf8 charset is set by default.
  • Decimal Separator: Select the type of separator for decimal records, between comma and period.
    • By default, the . dot is selected as a separator .
  • Persistent Connection: Define whether connections will be terminated after the execution of your scripts in Scriptcase applications.
    • By default, Scriptcase disables this option .
  • Use the schema before the table name: Define whether the database schema will be displayed before the table names.
    • By default, Scriptcase enables this option.

Questions or Connection Problems?

Contact our support in case of connection problems or questions regarding this database.
