XML

General settings

![Configuração de exportação Word da consulta][img_conf_geral_exportar_xml]

Export with password

This option defines the password used to open the exported file.

If this option is disabled the file can be opened by anyone who has access, if this option is enabled, a password must be defined that must be informed when trying to open the file.

This option does not prevent the exported file from downloading.

Example of the password request screen:

Exemplo da tela de solicitação de senha ao abrir arquivo exportado

Password

When enabling the option Export with password this attribute will be displayed for the definition of the password to access the file, which can contain between 1 and 255 alphanumeric characters.

If no password is informed, the file will be generated without a password to access the file.

The file password can be set in two ways:

Entering the password directly

In this way, the exported files will always have the same access password.

Exemplo da tela de solicitação de senha ao abrir arquivo exportado

Using a global variable

In this way the file password can be dynamically generated.

Exemplo da tela de solicitação de senha ao abrir arquivo exportado

Select Columns

This attribute controls the display of the Select Columns tab in the generated application, which allows the user to define the fields that must be included in the export.

The fields positioned to the right in blue will be present in the export, whereas the fields to the left in red are outside the exported file.

Configuração de exportação PDF da consulta

Open XML Directly

This attribute defines whether or not the file access buttons are displayed after exporting.

If Disabled

The export screen will be displayed on the same application tab where the progress bar will be displayed with the file access buttons, allowing the user to choose between viewing the file, downloading it or returning to the source application.

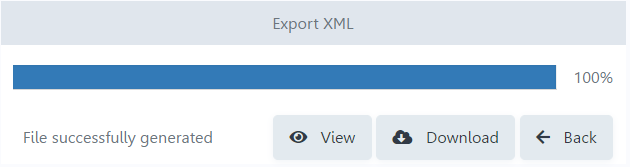

The screen displayed will be as follows:

Exemplo da tela de solicitação de senha ao abrir arquivo exportado

  • Preview - Opens the generated file in a browser tab.
  • Download - Download the generated file.
  • Back - Returns to the source application.

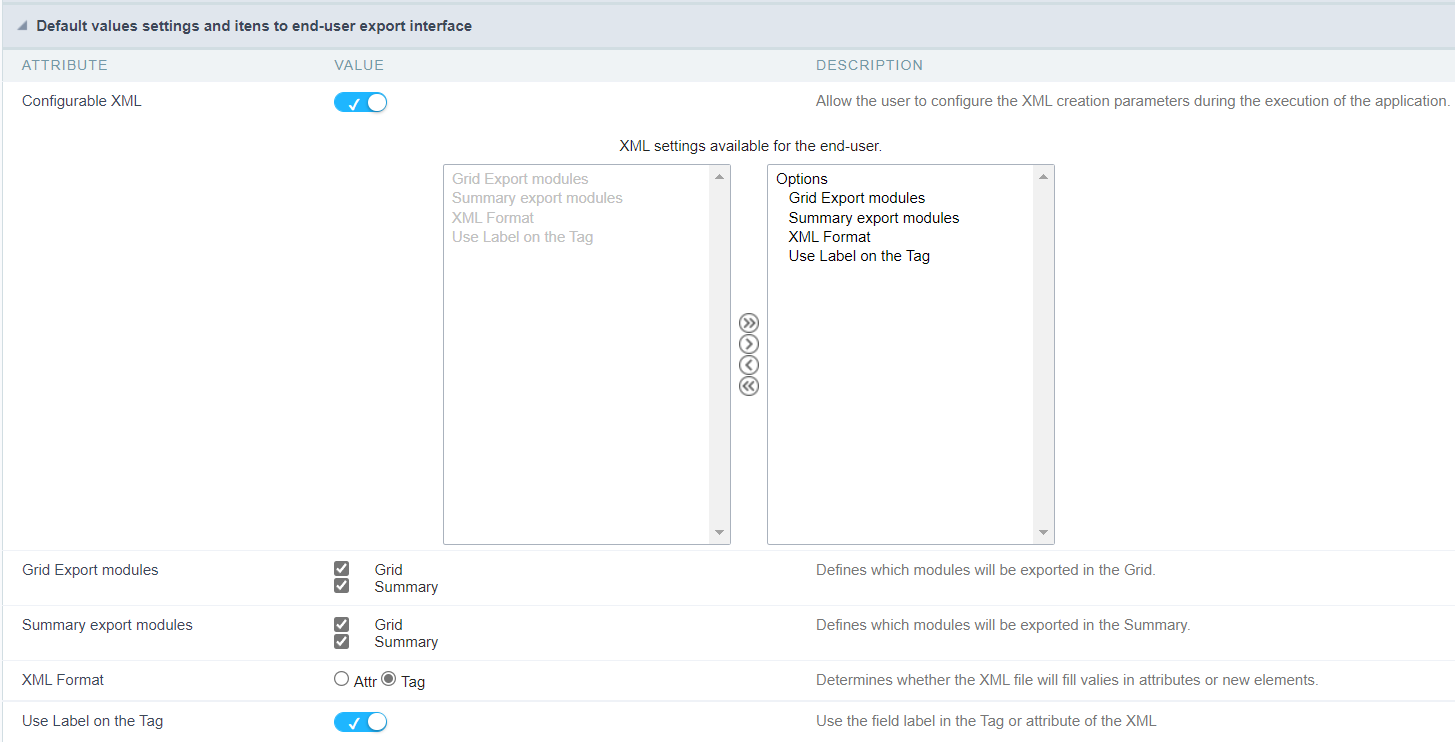

Default values settings and itens to end-user export interface

Configuração dos valores padrão da exportação excel

Configurable XML

Defines whether or not to display the export configuration screen at runtime.

If Enabled

A screen with configuration options for the exported file will be displayed, allowing the end user to configure the export the best way.

The configuration options must be defined by the developer in the field Excel settings available to the end user..

In this case, the settings defined by the developer will serve as default values for the user configuration screen.

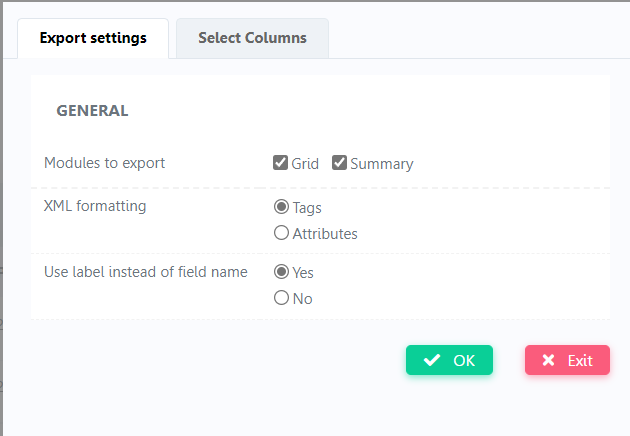

Setup screen example

Exemplo na tela de configuração do Word para o usuário final da aplicação

If Disabled

In this case, the settings defined by the developer will be applied to the file generated in the export.

Grid Export modules

This option allows the developer to choose which modules will be available when exporting the grid.

The options will be marked to be exported, however the user can change the modules at runtime.

Example:

Disabling the Summary option:

Modulo Exemplo

On execution, the Summary option will be disabled:

Modulo Exemplo

Summary export modules

This option allows the developer to choose which modules will be available in the summary export. The options will be marked to be exported, however the user can change the modules at runtime.

Example:

No option disabled in Summary export:

Modulo Exemplo

On execution, the Summary option will be disabled:

Modulo Exemplo

Format

Allows you to define the format of the generated document ( xls or xls ).

Export with totals

Allows the display of the total when exporting to Excel. [img_conf_geral_exportar_xml]: ../../../../../../assets/images/docs/app/comum/exportacao/conf_valores_padrao_usr/xml/conf_geral_exportar_xml_en.png
