Fields positioning

In this configuration screen we have a list of all the fields available in the application, whether they are fields mapped from the table or virtual fields (Created only in the Scriptcase interface).

It is also possible to allow the end user to manipulate the application’s fields in the way they prefer, for that we must add the columns button in the application’s toolbar.

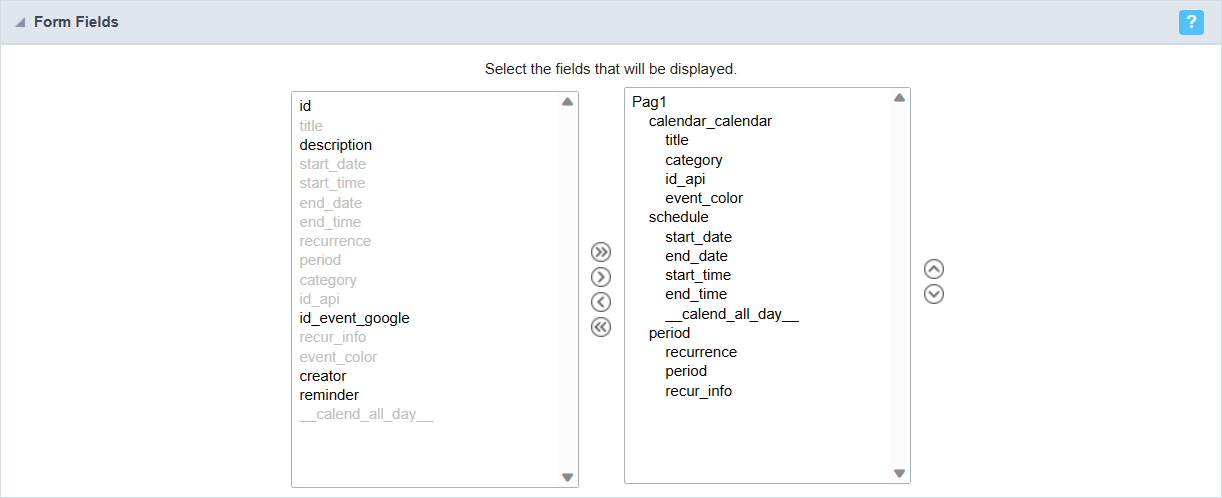

In the left column, we have a list with all the fields available for use and in the right column we have a list of the fields that were selected to be displayed in the running application.

Posicionamento dos campos

Adding and Removing Application Fields

The fields must be configured using the selection buttons, located between the columns.

  • img_mover_direita_todos - Move all fields to the right.
  • img_mover_direita - Moves only selected fields to the right
  • img_mover_esquerda - Moves only the selected fields to the left.
  • img_mover_esquerda_todos - Move all fields to the left.

In the left column, there are the application fields that are not in use in the filter, while the right column shows all the selected fields and the order in which they will be displayed.

To add fields to the filter, select the fields you want in the filter and click the img_mover_direita button.

To select fields in sequence, simply click on a field and drag. Pressing control (Ctrl) allows you to select multiple alternate fields.

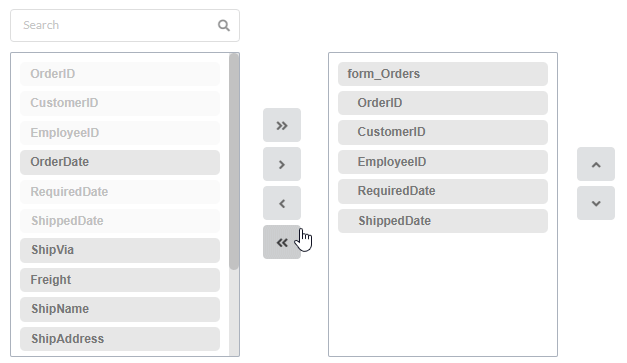

Search and positioning

Exemplo de posicionamento dos campos

Field display order

The fields will be displayed in the application respecting the order defined in the right column.

The display order must be defined using the sort buttons img_mover_para_cima and img_mover_para_baixo which will move the selected fields in the column.

Remembering that the fields must be positioned inside a block (customers) which must be inside a page (Pag1).

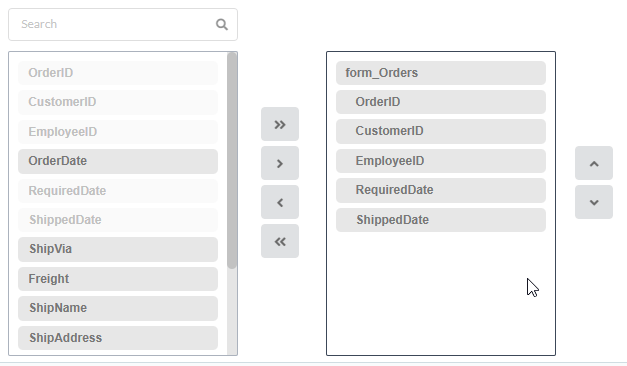

Check below the use of the buttons to order the fields

Exemplo de posicionamento dos campos

Save and Restore

Below the columns are two buttons:

  • Save which records the current placement of fields in columns.
  • Restore which reorganizes the fields returning to the last position saved.

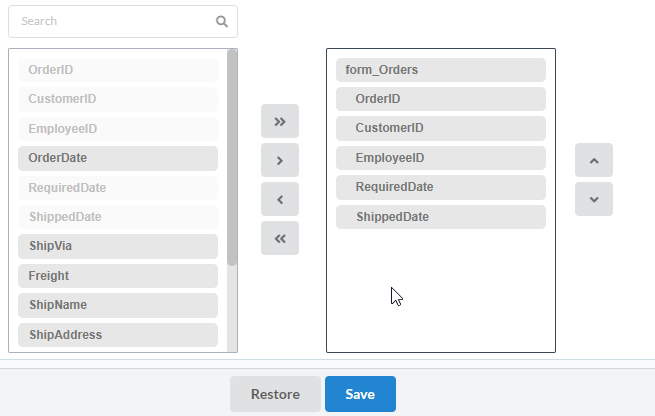

Restoring the positioning of the fields to the last saved definition.

Restaurando posicionamento dos campos
