Localization

General Settings

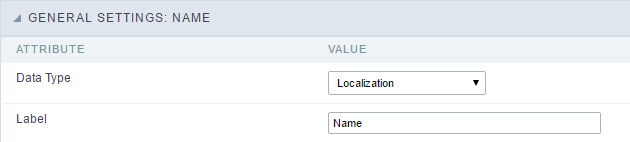

Location field Configuration Interface. Location field Configuration Interface.

Data Type

Define the type of field. When setting it to Location, you can see a Combobox with the Languages that are part of the Project.

Label

The Label option lets you define the title of a field. Example: If the database field name is “cmp_name_client”, You can display a different name for the user, like “Client Name”.

Label below field

Defines the message to be displayed below the field.

Label below field

Reload

It links the informed text to reload the form when clicking on it.

Display Settings

The Display Settings allows to define the CSS for the fields individually. For each Display Settings of Scriptcase, exists the same attributes available for this interface.

Display Settings Interface.

  • CSS of the Title
    • Font : Allows to choose the font type, that will be applied to the application field title.
    • Font Size : Allows to choose the the font size, that will be applied to the application field title.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the field, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the title of the field.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the title.
    • Horizontal Alignment : Allows to position the label of the field in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the label of the field in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the title of the field.
    • Height : To define a height for the title of the field.
  • CSS of the Field
    • Font : Allows to choose the font type, that will be applied to the application field.
    • Font Size : Allows to choose the the font size, that will be applied to the application field.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the field, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the field.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the field.
    • Horizontal Alignment : Allows to position the field in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the field in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the field.
    • Height : To define a height for the field.
  • CSS of the Input Object
    • Font : Allows to choose the font type, that will be applied to the Input Object. For example: Radio, Select, Text, etc
    • Font Size : Allows to choose the the font size, that will be applied to the application field.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the Input Object, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the Input Object.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the Input Object.
    • Horizontal Alignment : Allows to position the Input Object in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the Input Object in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the Input Object.
    • Height : To define a height for the Input Object.

Help Settings

Allow the developer to set up instructions and hints about the field’s use, allowing the developer to help the users about the system usage.

Help Configuration Interface.

Description of the settings attributes.

Help Description

In this area, you can set up a text that will be shown in the application according to the type of help selected below.

Help Type

Pop-up - Display a default icon ! beside the field. To display the message just click in the icon that a Pop-up will be displayed with the help text.

Help Display Type Configuration Interface.

Hint - Display a default icon ! beside the field. When the mouse is above the icon a help text will be displayed.

Help Display Type Configuration Interface.

The icon displayed when selecting the types Hint or Pop-up vary according to the theme that is being used in the application. This icon can be modified in the CSS Buttons.

Text - Display a text inside of a <span></span> beside the field.

Help Display Type Configuration Interface.

Help button position

Allow to set up where the help button will be displayed in the field, there are two options:

Beside: The help icon will be displayed beside the field.
Column: The help icon will be displayed beside the label of the field.
