Document (File Name)

General Settings

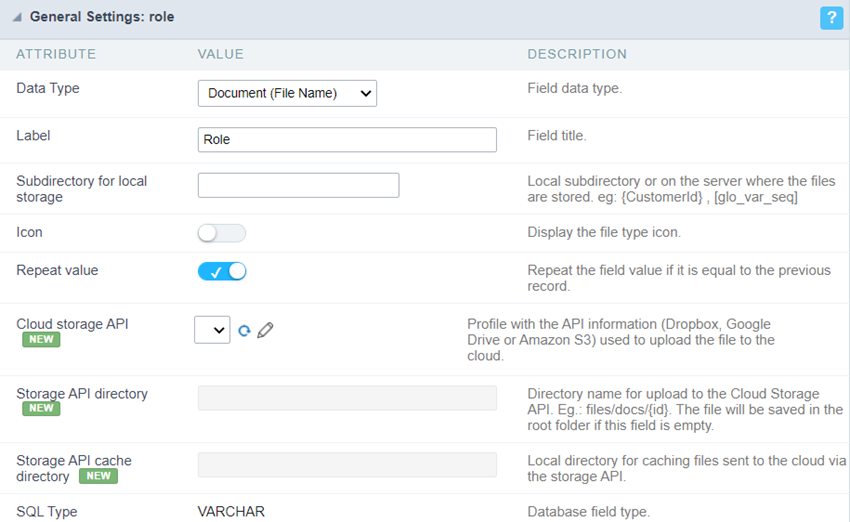

Upload field Configuration Interface. Upload field Configuration Interface.

Data Type

Define the type of field. When setting it to Document (File Name), all the document files are stored and loaded directly from the Database.

Label

The Label option lets you define the title of a field. Example: If the database field name is “cmp_name_client”, You can display a different name for the user, like “Client Name”.

Sub-folder

Sub-folder name that the files are stored.

Icon

Displays an icon beside the field to identify the type of document.

File Name

It allows defining the field to store the name of the document in the database.

Cloud storage API

Profile with the API information (Dropbox, Google Drive or Amazon S3) used to upload the file to the cloud created in Tools > API.

Storage API directory

Directory name for upload to the Cloud Storage API. Eg.: files/docs/{id}. The file will be saved in the root folder if this field is empty.

Storage API cache directory

Local directory for caching files sent to the cloud via the storage API.

SQL Type

It informs the data type of field in the database.

Display Settings

The Display Settings allows to define the CSS values individually for each field. For each Display schema of scriptcase, there are the same attributes available in Interface.

Display Settings configuration Interface. Display Settings configuration Interface.

  • Field Settings
    • Font Style : Allows to select the font family, that will be applied to the application field.
    • Font Size : Allows to choose the font size, that will be applied to the application field.
    • Italic Text : Formatting the Text to be Italic.
    • Bold Text : Formatting the Text to be Bold.
    • Don’t truncate : Do not truncate by the amount of bytes or by the Grid columns.
    • Number of characters : Amount of characters in bytes to display.
    • Horizontal Alignment : Allows to position the label of the filter in the desired location (left right, center and justify).
    • Vertical Alignment : Allows to position the label of the filter in the desired location (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Background Image : Background Image of the field.
    • Line Break : Allows the Line Break.
    • Font Color : Allows to apply a color to the font by choosing a color from the color palette.
    • Background Color : Allows to apply a color to the field background by choosing a color from the color palette.
    • Width : Allows to define a width to the field.
    • Height : Allows to define a height to the field.
    • Title Horizontal Alignment : Define the Title Horizontal Alignment of the field.
    • Title Vertical Alignment : Define the Title Vertical Alignment of the field.
    • Bold : Applies the bold type font to the field.
