SQL Builder

This tool helps the construction of Queries in a Wizard form. These queries can be saved for later use. Any SQL can run directly on the Run tab that is displayed after the database is chosen.

Database

Firstly you need to select the connection(Database) that you want to use. It is important that you must have a connection created in the project for it to be listed in SQL Builder.

List of connections

After selecting the desired connection, click the Confirm button to use this connection.

WARNING: The SQL Builder does not parse SQL, only receives the SQL Query informed by the user and executes it. So, if you use PDO drivers, only these are enabled: PDO_DBLIB, PDO_MYSQL, PDO_PGSQL, PDO_SQLITE. If you use a driver other than one of these listed, you may be returned with the “BAD GETCOLUMNMETA()” error in the column titles.
Go to PHP page for more information.

Tables

All the existing tables in the database are listed in the Tables tab. You can select various tables, although they need to have a relationship between them.

Select the desired tables to create the query.

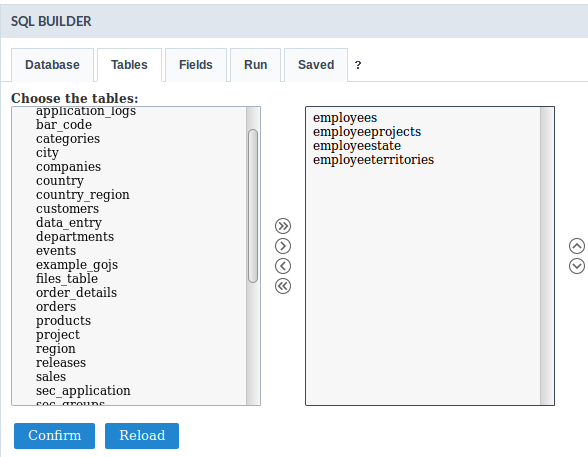

List of tables

After selecting the tables, click the Confirm button to use this connection.

Fields

Select the fields that will be part of the query. The fields can be ordered alphabetically (Ascendant) or in the order that they were created (Default)

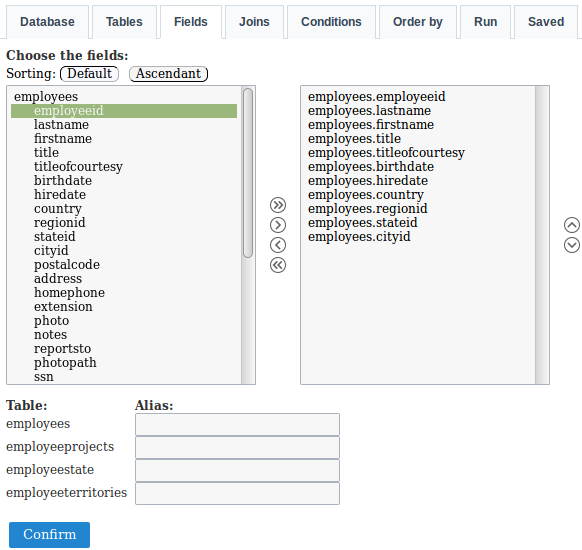

Field list can alias creation

It is possible to create an alias for the selected tables, this option can be found below the field list were also all the selected tables will be listed.

Joins

Defining the fields, it is necessary to configure the join. To do that, you need to select the tables that have a relationship, next you will select the type of join that will be used in the field Type then click on Add.

Join configuration

After clicking on add, click on Confirm, so that you can inform the fields that do the relationship between the tables.

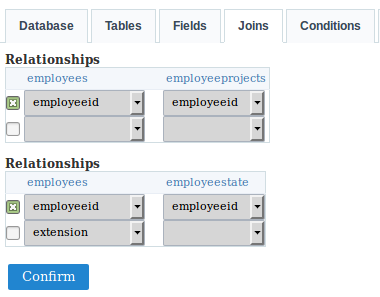

Definition of field links

Defining the fields, you will be redirected to the run tab.

To add a “WHERE” clause to the SQL, click on the tab Conditions

Conditions

You can add the “WHERE” clauses where the query was created.

Condition definition

Order By

Define the sorting of the query result display.

Defining the Sorting

Run

This is where you can run the SQL commands. The result of the query configuration wizard will be displayed on this tab. You can run DML (Data Manipulation Language) commands here and also DDL (Definition Data Language) commands.

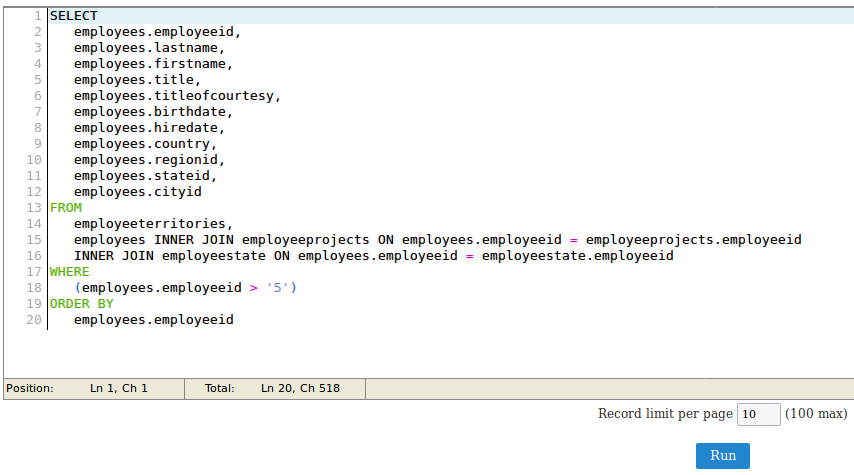

Result display

You can define a total of records per page.

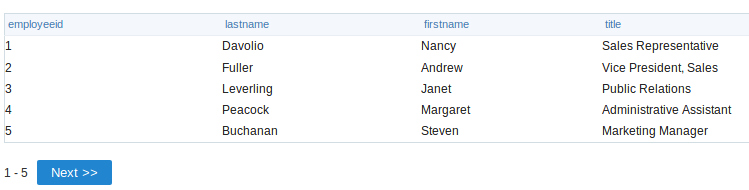

Viewing the query result

Saved

To save the created commands, just inform the name of the query and click on the save button. The commands that are already, will be listed.

Saving SQL command
