Many-to-many relationship

Allows you to configure automatic update link tables in N:N relationships

Identification

This link will be handled as a field within the form application. We have to set the field name, data type, label and define if we will use a specific connection for this link. If decide to you use a specific connection there will be a combo box with for you to select according to the connections available in the project.

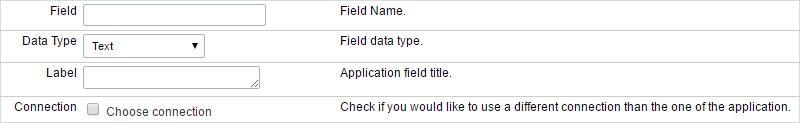

Creating field to update link table. Creating field to update link table.

Grid Information

In this step you need to inform the data source, this connection will be available for the user to select (lookup). It allows you to choose if the select command is manually informed or if it will be based on a table.

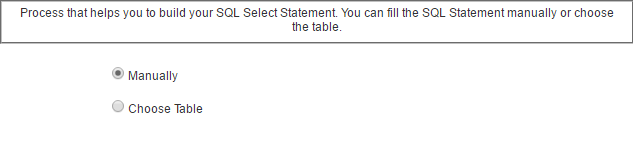

Informing the select command. Informing the select command.

If you check the option “Choose table” there will be 3 combo boxes for you to select according to the connections tables available in the project: table, key field and description.

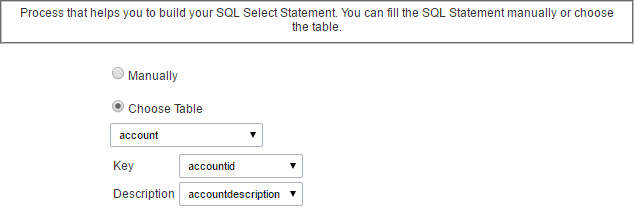

Informing the select command based in a table. Informing the select command based in a table..

  • Key : Value that will be stored in the table.
  • Description : Value that will be displayed in the update field.

SQL Select Statement

Select command informed by user or created based on a table, it is responsible for displaying the selection field contents.

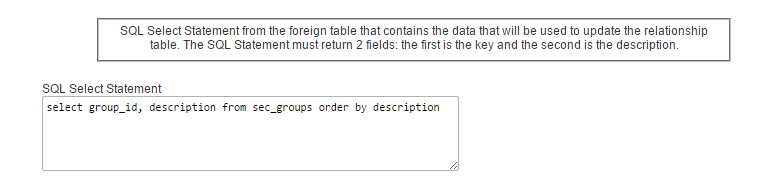

Select command. Select command.

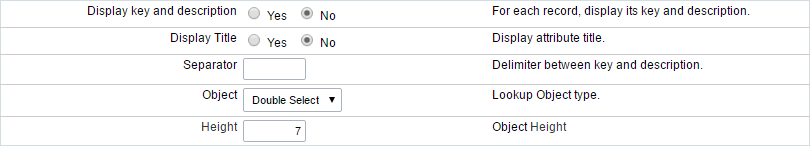

Lookup display

This option sets the display for the update field

Field object type. Field object type.

  • Display key and description : If you want to display the code and the description informed in the select command.
  • Display Title : Displays attribute title (see attribute).
  • Separator : When the option Display key and description is checked as yes you must define a separator between the code and the description.
  • Object : Object field type that will be displayed in the update form. The types are: Select, Radio, Check box and Double Select.
  • Check and Uncheck All : Option to Check and Uncheck all records (available only for when Check box object is selected).
  • Columns : This option sets the number of columns (available only when the objects Check box or Radio is selected)
  • Height : This option sets the object height (available only when the objects Select or Double Select is selected).

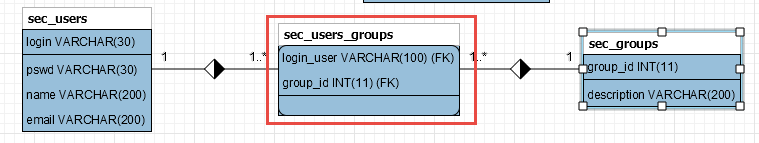

Link table. Link table.

This option sets the relationship table that will be updated.

Update table selection. Update table selection.

Relationship Keys

link key link key

This option sets the application fields that are related with the link table fields.

Setting values for the fields in the update table. Setting values for the fields in the update table.

Lookup Field

Lookup field. Lookup field.

This option sets the field from the lookup table that is related to the link table.

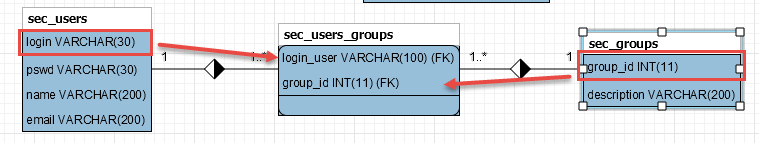

Defining the foreign key relationship table. Defining the foreign key relationship table..

This option sets the values that are recorded in the fields of the link table that are not foreign key.

Setting the assignment field. Setting the assignment field.

  • Attributes : It is written a value without the need for user data entry, it is an application field itself.
  • Data entry : It is written a value reported by the user, it is necessary to create a field and relate it by the select.

Available only for Double Select object

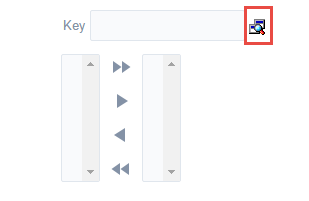

Search in the double select field. Search in the double select field.

This option sets a filter for the link field.

![Search settings for the link field.][relacao_n_n_info_filtro_config] Search settings for the link field.

  • Limit of Records : Maximum number of records returned by the search.
  • Initial State : this option sets whether the form field load come Filled or empty.
  • Search Fields : This option sets whether the search will be displayed the code and/or Description.

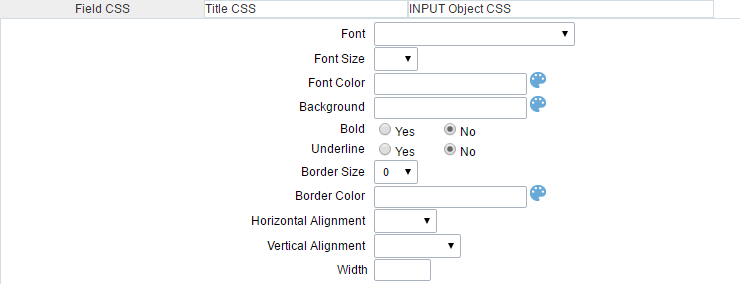

General Display Settings

This option allows you to configure all general display settings from from field title and object.

Display settings. Display settings.

Help Configuration

This feature allows it to be documented instructions for use of the application generated, that is, help end users to better understand the business rules of the system and the best way to operate it.

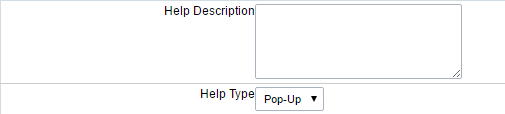

Help Configuration Help Configuration

  • Attributes
  • Help Description : This option allows the inclusion of a text that will be displayed when the user to position the mouse over the field.
    • Help Type:
      • Pop-up : When choosing the type pop-up, help icon is displayed next to the field; that when clicked, will display what was reported in the attribute Describes Help.
      • Hint : When you pass the mouse cursor over the field, will help described in the field Describe Help.
      • Text : Next to the field will appear a text containing the help that was described in the field Describe Help.
