Connection to MSSQL Server NATIVE SRV PDO

At Scriptcase, we have the following drivers available for connecting to SQL Server on Windows: MSSQL Server NATIVE SRV, MSSQL Server NATIVE SRV PDO and MSSQL Server ODBC .. If you are using your own PHP, as a pre-configured MSSQL environment, it can be manually configured in PHP.


Before proceeding with this documentation, check your PHP architecture. For drivers to be enabled correctly, files must be downloaded according to the architecture used.

  • In your Scriptcase, there is the file info.php, access it by the URL:, where you will find the information regarding the architecture in phpinfo().

NOTE: If you are using Scriptcase’s automatic installer, the PHP architecture will be the same as the one you downloaded. Download Microsoft ODBC Driver 13 For SQL Server according to your PHP architecture .

PHP Architecture

  • x86 Architecture = 32 bits
  • x64 Architecture = 64 bits
File list

Listed below are the necessary files for the drivers to be enabled.

Compatibility Table

  Server 2016 Server 2012 /R2 Windows 10 Windows 8 / 8.1 Server 2008 SP2 / R2 SP1 Windows 7 SP1 Windows Vista SP2
Native SRV PDO Disponível Disponível Disponível Disponível Disponível Disponível Unavailable
Native SRV Disponível Disponível Disponível Disponível Disponível Disponível Unavailable
ODBC Disponível Disponível Disponível Disponível Disponível Disponível Disponível

IMPORTANT: if you need to use Database Identifiers in your tables, we recommend using the double quotation marks( ) instead of the brackets( [ ] ) because of the conflict with the of Global Variables syntax Scriptcase. Using the brackets as database identifiers may lead to problems in the Scriptcase applications.

Configuring and enabling MSSQL Server SRV PDO on Windows

If you are using Scriptcase’s automatic installer, the extensions are already enabled in PHP, requiring only the installation of the client. Proceed to item 3

1 - Extract the .zip file and copy the files from the php_pdo_sqlsrv_81_nts_x64 and php_sqlsrv_81_nts_x64 .dll extensions previously downloaded to your PHP’s ext folder.

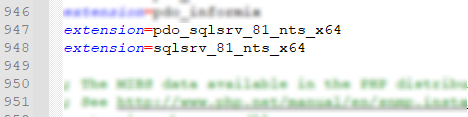

2 - In the php.ini file, located in C:\php, add the lines referring to the MSSQL Server extensions php_pdo_sqlsrv_81_nts_x64 and php_sqlsrv_81_nts_x64. See the example below:


Enabling MSSQL Extensions

3 - After downloading the Microsoft ODBC Driver 13 For SQL Server file, run the installer and follow the steps below:

installation wizard

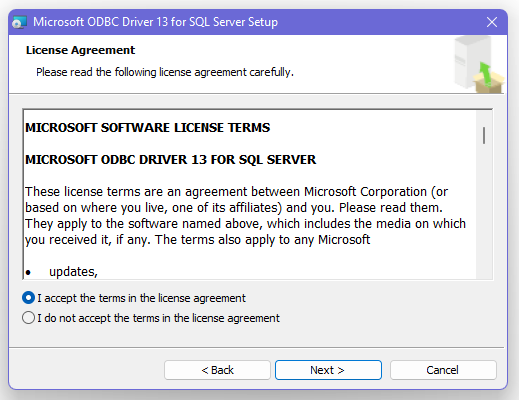

4 - Accept the terms of the license agreement and click Next.

installation wizard

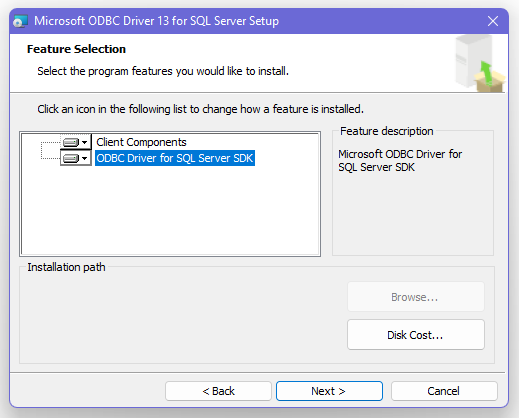

5 - Check the option “ODBC Driver for SQL Server SDK”, because the components that we will need are also in this option.

installation wizard

  • In this option, leave the option “Client Components” checked.

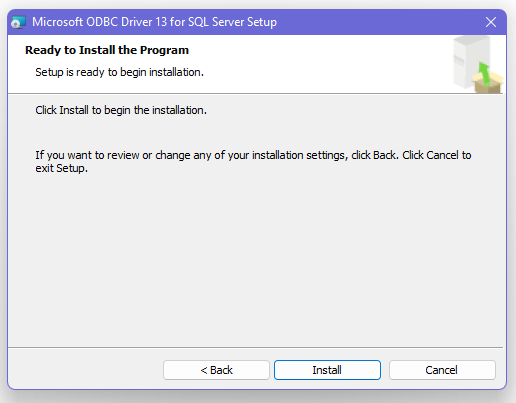

6 - Click Install to start the client installation.

installation wizard

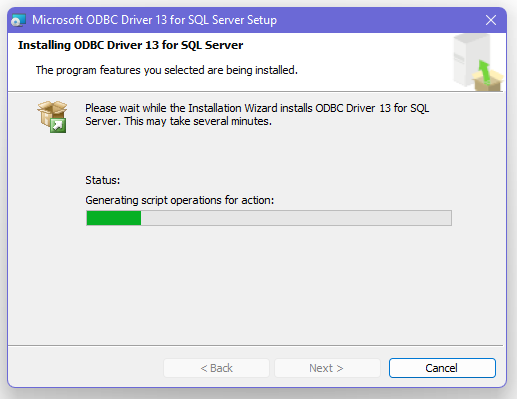

7 - The program features you selected are being installed.

installation wizard

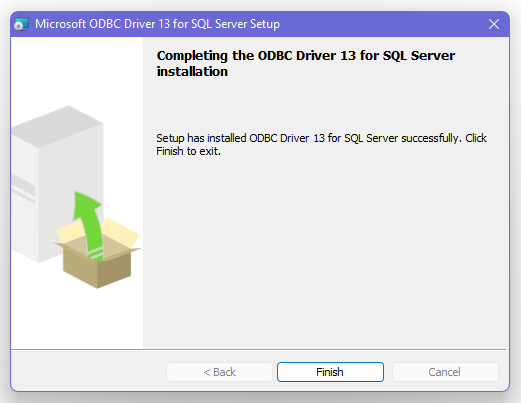

8 - Click finish to exit.

installation wizard

9 - Restart Apache service through Task Manager.

  • Open the Task Manager and click on the Services tab.

  • Look for the ApacheScriptcase9php81 or Apache2.4 service and right click on that service, then click Reiniciar.

Reiniciando Apache

Creating a Connection in Scriptcase

See below how to create a connection in your Scriptcase project, using the enabled Driver and the Microsoft SQL Server database.

1 - Access a project from your Scriptcase.

2 - Click the New Connection icon to create a connection

Creating a new connection

or access the Database > New connection menu.

Creating a new connection

After that, a screen will appear with all database connections.

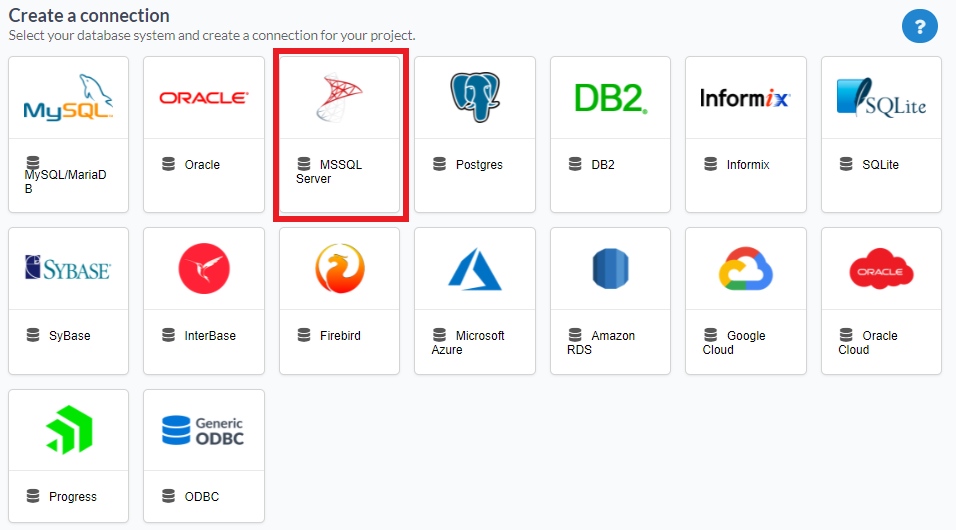

3 - Select the MSSQL Server connection.

Selecting the database connection

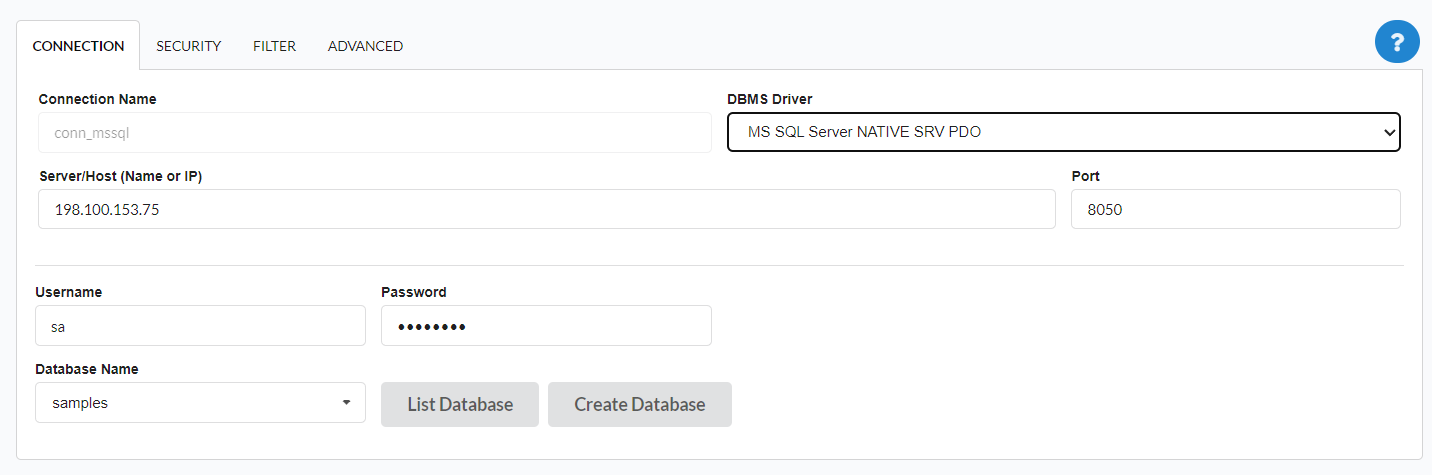

Enter the parameters for connecting to your MSSQL Server database as follows:

Connecting to the database

  • Connection name: Define the name of your new connection. By default, Scriptcase adds the prefix conn along with the database name.

  • DBMS Driver: Select the DB2 Driver to connect. In this example, we use the MSSQL Server NATIVE SRV PDO Driver.

  • Server/Host (Name or IP): Enter the IP or domain of the server where the database is installed and its instance separated by a backslash.

  • Port: Enter the port to connect to the MSSQL Server. By default, the port defined is 1433.

  • Database Name: List and select the database you will connect to.
  • EX: samples

  • Username: Inform the user to authenticate the connection to your database.

  • Password: Enter the password to complete the authentication process.

  • Test connection: Click this button to get a response to the Scriptcase request to find out if the parameters entered are correct.

Testing the database connection

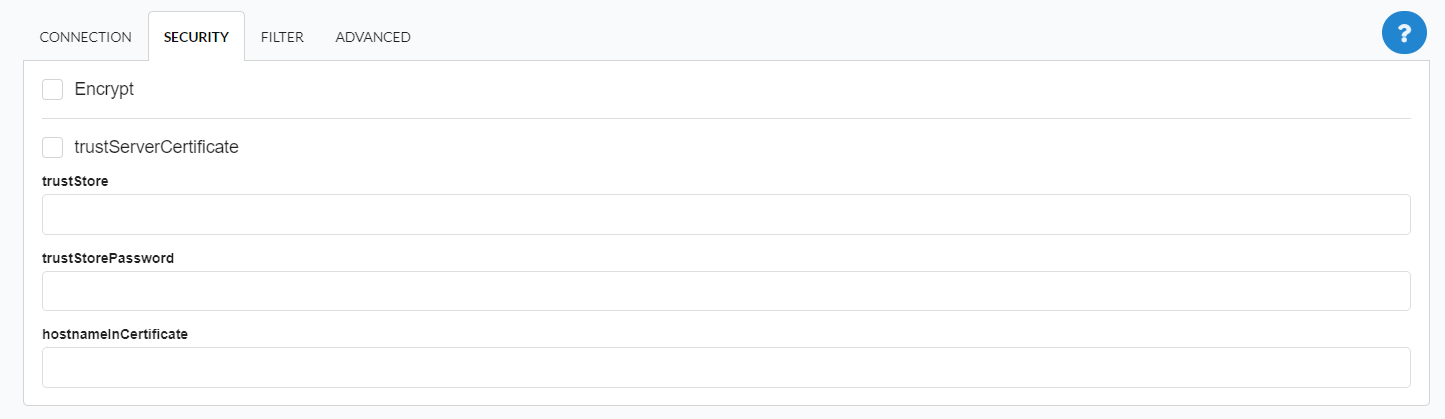

Security tab, where the connection encryption settings are defined.

Database connection security

  • Encrypt

    This property specifies whether communication with the SQL server should be encrypted. To enable encryption, you must set this property to “true”. This ensures that data sent between the client and server is protected by encryption.

  • trustservercertificate

    Set to “true” to specify that the driver does not validate the server’s TLS/SSL certificate.

    If “true”, the server’s TLS/SSL certificate is automatically trusted when the communication layer is encrypted using TLS.

  • trustStore

    The path (including the file name) to the certificate’s trustStore file. The trustStore file contains the list of certificates that the client trusts.

    When this property is not specified or is set to null, the driver relies on the trust manager factory query rules to determine which certificate store to use.

  • trustStorePassword

    The password used to verify the integrity of trustStore data.

    If the trustStore property is set but the trustStorePassword property is not set, the integrity of the trustStore is not checked.

  • hostnameInCertificate

    The hostname to use to validate the SQL Server TLS/SSL certificate.

    This property allows you to specify the expected hostname in the SQL server certificate. This is useful to ensure that the connection is only made to the correct server and not to a malicious server that may be using an invalid certificate.

    Note: This property is used in combination with the encrypt/authentication properties and the trustServerCertificate property. This property affects certificate validation if the connection uses TLS encryption and trustServerCertificate is set to “false”. Ensure that the value passed to hostNameInCertificate matches the Common Name (CN) or DNS name in the Subject Alternative Name (SAN) in the server certificate for a TLS connection to be successful. For more information about encryption support, see Understanding encryption support.


Accessing this tab, you can configure which Database items will be displayed on the connection, depending on the owner or not.

Filtering the database connection


It allows the connection to see tables, views, system tables and procedures depending on the items selected by the user. By default, the items Tables and Views are already selected by Scriptcase.

  • Tables: Selecting this option, the tables in your database will be displayed.
    • By default, Scriptcase enables this option .
  • Views: By selecting this option, the views of your database will be displayed.
    • By default, Scriptcase enables this option .
  • System Tables: Selecting this option, the system tables of your database will be displayed.

  • Procedures: By selecting this option, the procedures of your database will be displayed.


Allows you to define which tables and owners are displayed.

  • Tables: You can define in this option which tables will be displayed. The configuration can contain a PREFIX%% or name of the tables to display.
    • By default, Scriptcase leaves this option empty .
    • EX:

    Example of using the prefix

  • Owner: Inform the user who sees the tables informed for display.
    • User must be capitalized as in the example above .
  • View: Choose whether tables for the informed owner are displayed.

NOTE: By using table filtering, you eliminate unnecessary tables for your project and improves the performance of your database connection.


In this tab, you have access to specific settings for the connection. The settings made in this session impact the data display and application performance.

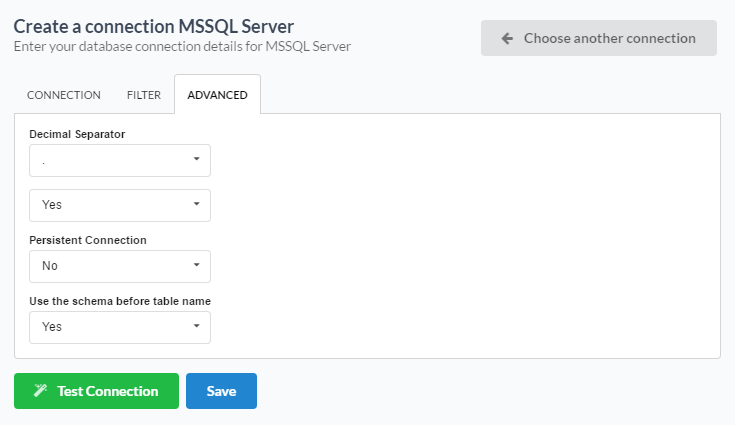

Advanced database connection configuration

  • Decimal Separator: Select the type of separator for decimal records, between comma and period.
    • By default, the . dot is selected as a separator .
  • Persistent Connection: Define whether connections will be terminated after the execution of your scripts in Scriptcase applications.
    • By default, Scriptcase disables this option .
  • Use the schema before the table name: Define whether the database schema will be displayed before the table names.
    • By default, Scriptcase enables this option .
