Fields positioning

In this configuration screen we have a list of all the fields available in the application, whether they are fields mapped from the table or virtual fields (Created only in the Scriptcase interface).

It is also possible to allow the end user to manipulate the application’s fields in the way they prefer, for that we must add the columns button in the application’s toolbar.

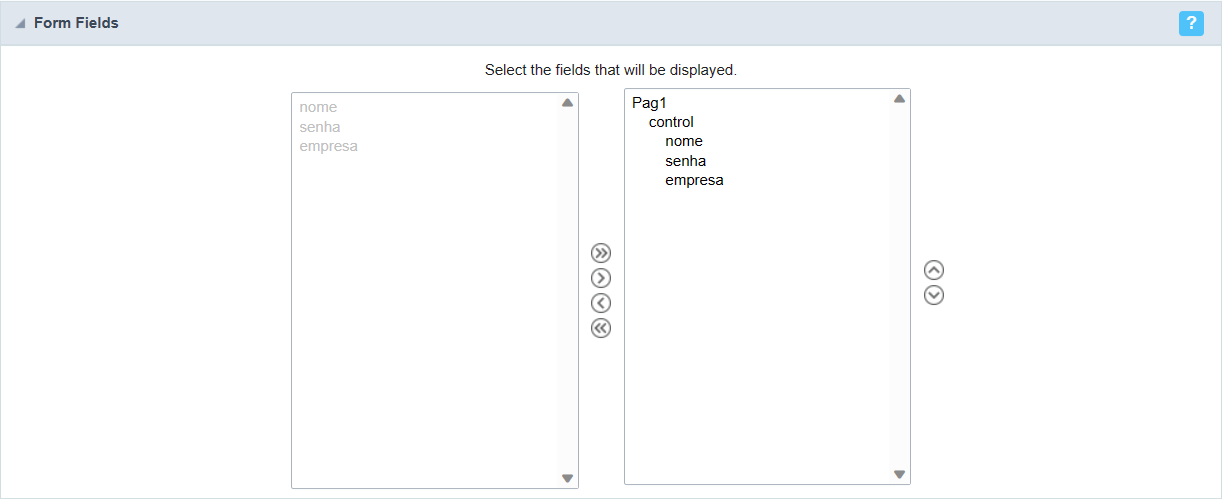

In the left column, we have a list with all the fields available for use and in the right column we have a list of the fields that were selected to be displayed in the running application.

Posicionamento dos campos

Adding and Removing Application Fields

The fields that will be displayed when running the application are positioned in the right column, where we can also view a page (Pag1) and a block (customers).

All fields must be positioned within a block, which in turn must be within a page.

The fields listed in the left column are the other fields available in the application that will not be displayed. To add or remove fields we must use the buttons positioned between the columns.

  • img_mover_direita_todos - Move all fields to the right.
  • img_mover_direita - Moves only selected fields to the right.
  • img_mover_esquerda - Moves only selected fields to the left.
  • img_mover_esquerda_todos - MMove all fields to the left.
Check out how to use the buttons below.

Exemplo de posicionamento dos campos

Field display order

The fields will be displayed in the application respecting the order defined in the right column.

The display order must be defined using the sort buttons img_mover_para_cima and img_mover_para_baixo which will move the selected fields in the column.

Remembering that the fields must be positioned inside a block (customers) which must be inside a page (Pag1).

Check below the use of the buttons to order the fields

Exemplo de posicionamento dos campos

Save and Restore

Below the columns are two buttons:

  • Save which records the current placement of fields in columns.
  • Restore which reorganizes the fields returning to the last position saved.
Restoring the positioning of the fields to the last saved definition.

Restaurando posicionamento dos campos
